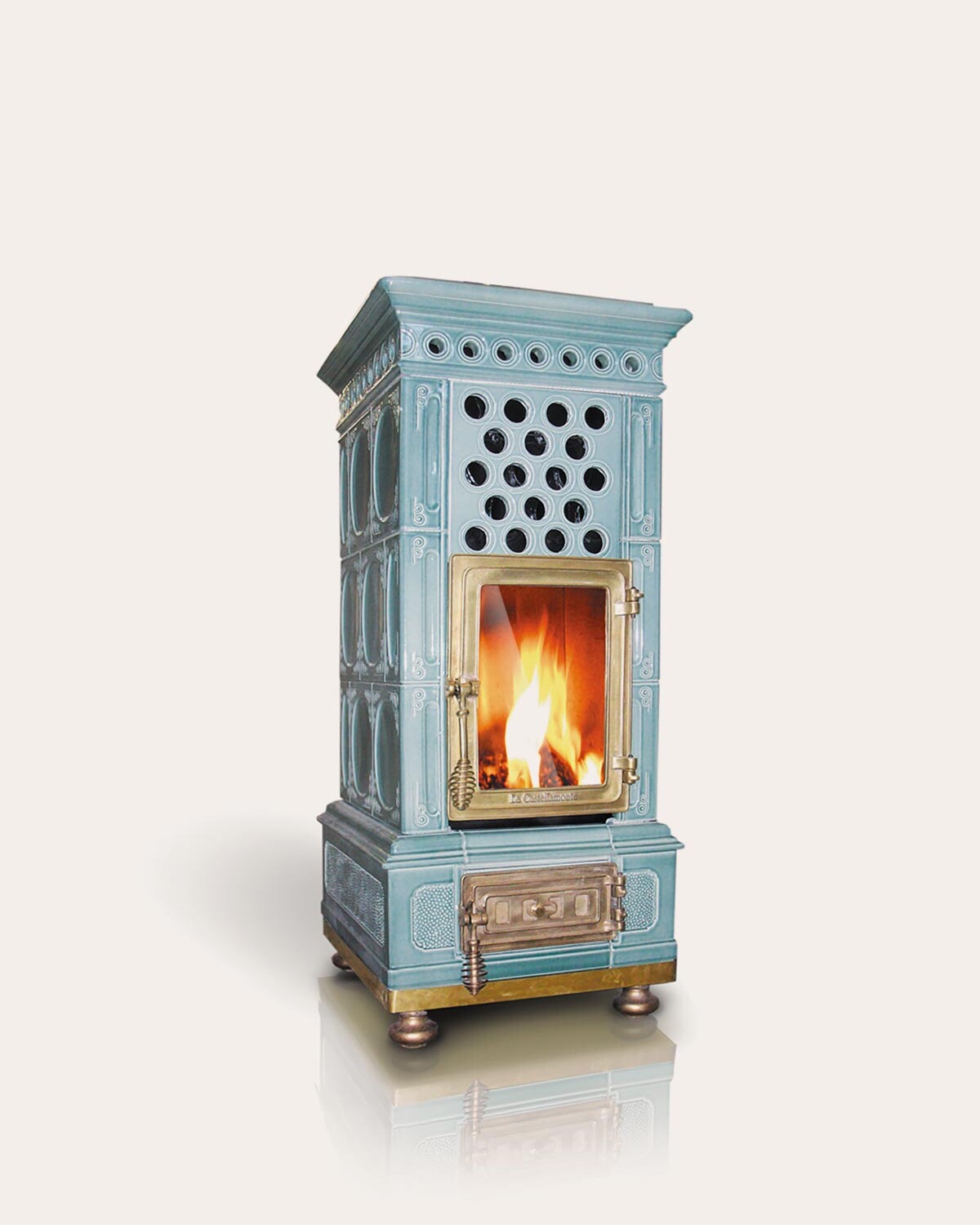

Amabile
Amabile is a very classic, rectangular stove that can be inserted in any room.
It is inspired by periods of great decorative impact, such as Liberty or Deco.
The third and fourth size can be equipped with a Great Fire door and fireplace, for greater output and autonomy.
Certifications
Photo Gallery
| SIZE | 1 | 2 | 3 | |
|---|---|---|---|---|
| Heat Output * | kW | 7,5 | 9 | 10,5 |
| Min-Max Heat Output | % | 4 - 9 | 4 - 10 | 5 - 12 |
| Heating Capacity | % | 100 - 260 | 100 - 280 | 140 - 340 |
| Efficiency | mg/Nm³ | 81 | 79 | 82 |
| Carbon Monoxide Emission · % Co 13% O2 | Kg/h | 0,1 | 0,09 | 0,17 |
| Dust · 13% O2 | °C | - | - | - |
| Wood Consumption | cm | 2,2 | 2,7 | 3 |
| Smoke Temperature | Pa | 204 | 224 | 196 |
| Flue Pipe Diameter | Kg | 15 | 15 | 15 |
| Draft | Kg | 11 | 11 | 11 |
| Total Weight | Kg | 300 | 330 | 360 |
| Ceramic Column Weight | cm | 25 | 25 | 25 |

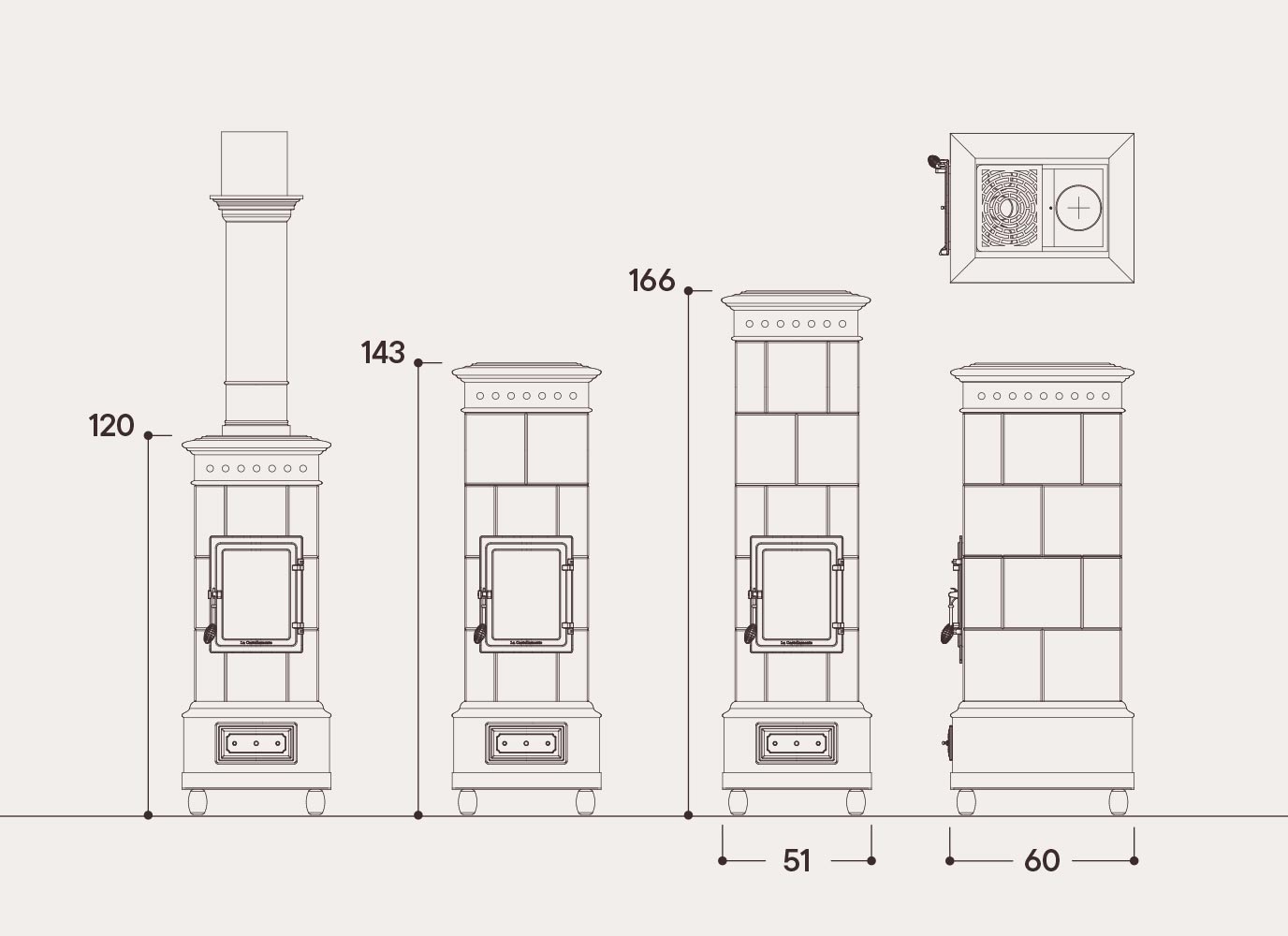

| Measurements (w x d x h) | cm | 51 x 60 x 120 | 51 x 60 x 143 | 51 x 60 x 166 |
| Energy Efficiency | A + | A + | A + |
* Complies UNI EN-13240, DEUTSCHLAND BImSchV 2
| SIZE | 1 | 2 | 3 | |
|---|---|---|---|---|
| Heat Output * | kW | 6,5 | 7 | 7,5 |
| Efficiency | mg/Nm³ | 88,5 | 88 | 88 |
| Carbon Monoxide Emission · % Co 13% O2 | Kg/h | 0,0281 | 0,0281 | 0,0265 |
| Dust · 13% O2 | °C | 10 | 10 | 9,4 |
| Wood Consumption | cm | 1,805 | 1,903 | 2,024 |
| Smoke Temperature | Pa | 178,1 | 171,1 | 164,1 |
| Flue Pipe Diameter | Kg | 15 | 15 | 15 |
| Draft | Kg | 10 | 10 | 10 |
| Total Weight | Kg | 300 | 330 | 360 |
| Ceramic Column Weight | cm | 25 | 25 | 25 |
| Measurements (w x d x h) | cm | 51 x 60 x 120 | 51 x 60 x 143 | 51 x 60 x 166 |
| Energy Efficiency | A + | A + | A + |
* Complies UNI EN-13240, DEUTSCHLAND BImSchV 2
The stove can deliver higher performance, in terms of kW, up to a maximum heatable volume of 340 m3, in the largest size, with average insulation.
