Grand’Ovale

Grand’Ovale is a stove characterized by a great yield, great autonomy and significant emission parameters, being equipped with a Great Fire door and wide fireplace, thanks to which it was awarded the German Din Plus in 2009. Recommended for medium to large volumes, it can also be used as a waterstove.

Certifications

Find a Dealer

Request Information

Photo Gallery

Close GalleryView all

Models

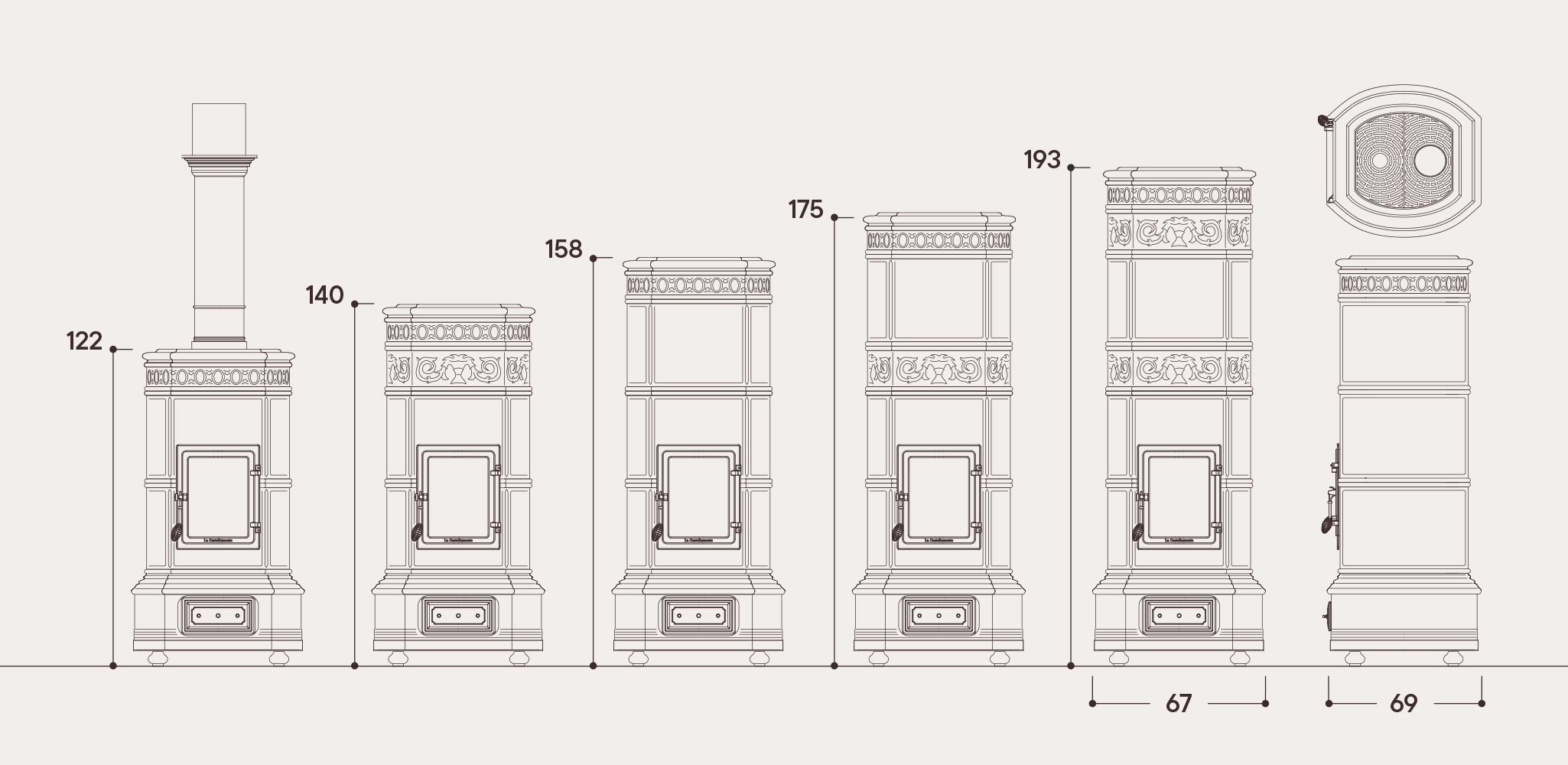

Measurements

Technical Data

SIZE		1	2	3	4	5
Heat Output *	kW	10	11	12	13	13
Min-Max Heat Output	%	5 - 11	5 - 12	6 - 13	6 - 14	7 - 15
Heating Capacity	%	140 - 310	140 - 320	170 - 370	170 - 400	200 - 430
Efficiency	mg/Nm³	84	84	85	85	85
Carbon Monoxide Emission · % Co 13% O₂	Kg/h	0,05	0,06	0,07	0,08	0,08
Dust · 13% O₂	°C	9	14	18	21	21
Wood Consumption	cm	2,6	2,7	3	3,2	3,2
Smoke Temperature	Pa	234	250	253	255	255
Flue Pipe Diameter	Kg	15	15	15	15	15
Draft	Kg	12	12	12	12	12
Total Weight	Kg	345	380	410	430	450
Ceramic Column Weight	cm	25	25	25	25	25
Measurements (w x d x h)	cm	67 x 69 x 122	67 x 69 x 140	67 x 69 x 158	67 x 69 x 175	67 x 69 x 193
Energy Efficiency		A +	A +	A +	A +	A +

* Complies UNI EN-13240, DEUTSCHLAND BImSchV 2

Technical Data with Catalytic Filter

SIZE		1	2	3	4	5
Heat Output *	kW	7,88	8,3	8,66	9	9,19
Efficiency	mg/Nm³	87,7	87,7	90,8	89,7	89,7
Carbon Monoxide Emission · % Co 13% O₂	Kg/h	0,0176	0,0219	0,0219	0,0241	0,0241
Dust · 13% O₂	°C	9,8	9,8	8,3	10	10
Wood Consumption	cm	2,11	2,2	2,24	2,3	2,409
Smoke Temperature	Pa	185	185	148	148	148
Flue Pipe Diameter	Kg	15	15	15	15	15
Draft	Kg	11	11	12	10	10
Total Weight	Kg	345	380	410	430	450
Ceramic Column Weight	cm	25	25	25	25	25
Measurements (w x d x h)	cm	67 x 69 x 122	67 x 69 x 140	67 x 69 x 158	67 x 69 x 175	67 x 69 x 193
Energy Efficiency		A +	A +	A +	A +	A +
