MiniStack

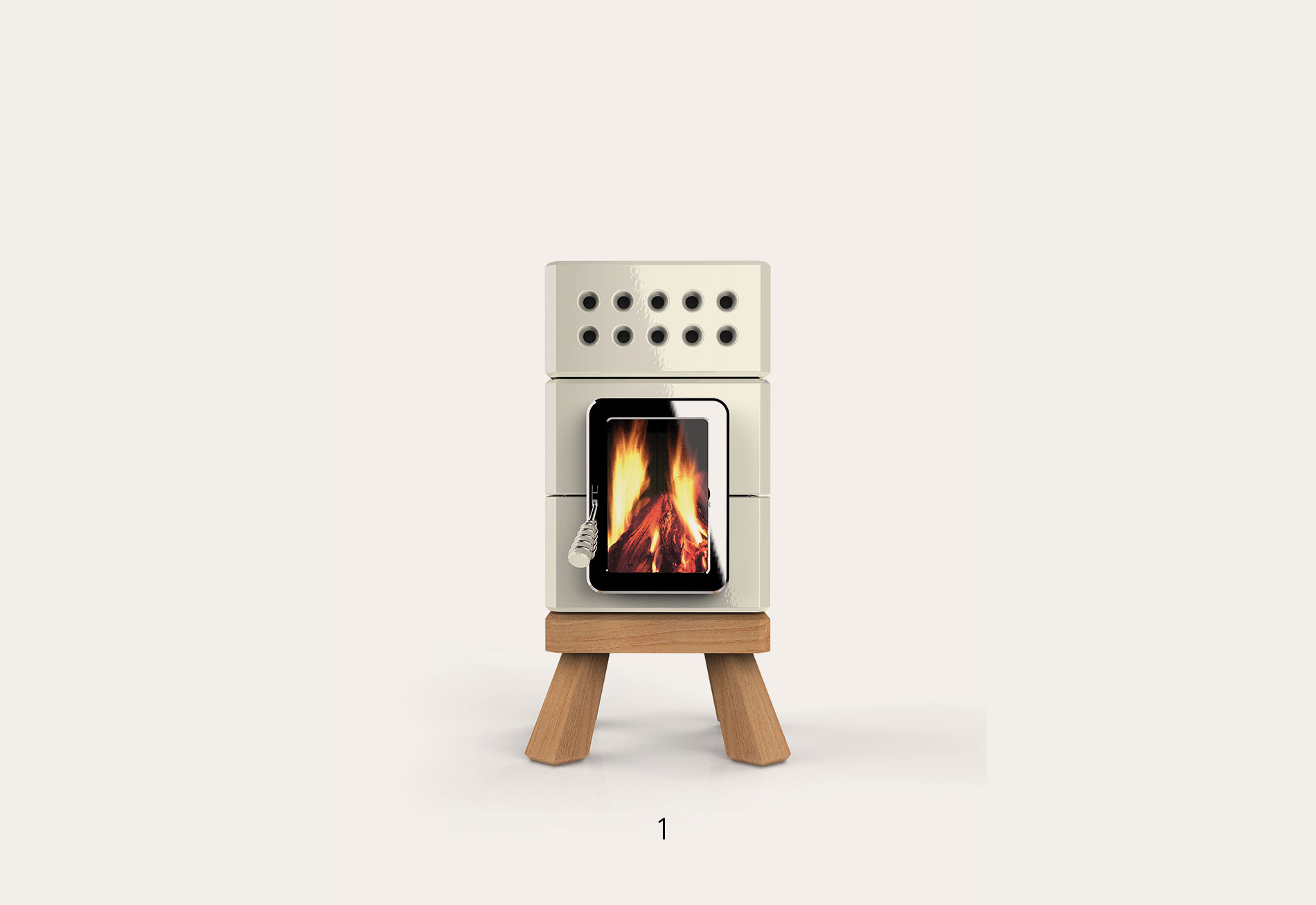

MiniStack keeps the wooden base, legacy of the ancient stoves tradition of Castellamonte that characterizes the entire Stack line. Its measurements are: cm 58 x 56 x 107h , as indicated below and in the Stack Stoves catalogue.
It heats up to 200 m3 with a nominal heat output of 6 kW.
WOOD burning.
Design by adriano design.
Certifications
Photo Gallery
| SIZE | 1 | |
|---|---|---|
| Heat Output * | kW | 6 |
| Min-Max Heat Output | kW | 3 - 7 |
| Heating Capacity | m³ | 85 - 200 |
| Efficiency | % | 77 |
| Carbon Monoxide Emission · % Co 13% O2 | % | 0,06 |
| Dust · 13% O2 | mg/Nm³ | 30 |
| Wood Consumption | Kg/h | 1,8 |
| Smoke Temperature | °C | 250 |
| Flue Pipe Diameter | cm | 15 |
| Draft | Pa | 11 |
| Total Weight | Kg | 170 |
| Ceramic Column Weight | Kg | 25 |
| Measurements (w x d x h) | cm | 59 x 54 x 109 |
| Energy Efficiency | A |
* Complies UNI EN-13240, DEUTSCHLAND BImSchV 2
Colori Stack Lucidi
Colori Stack Opachi

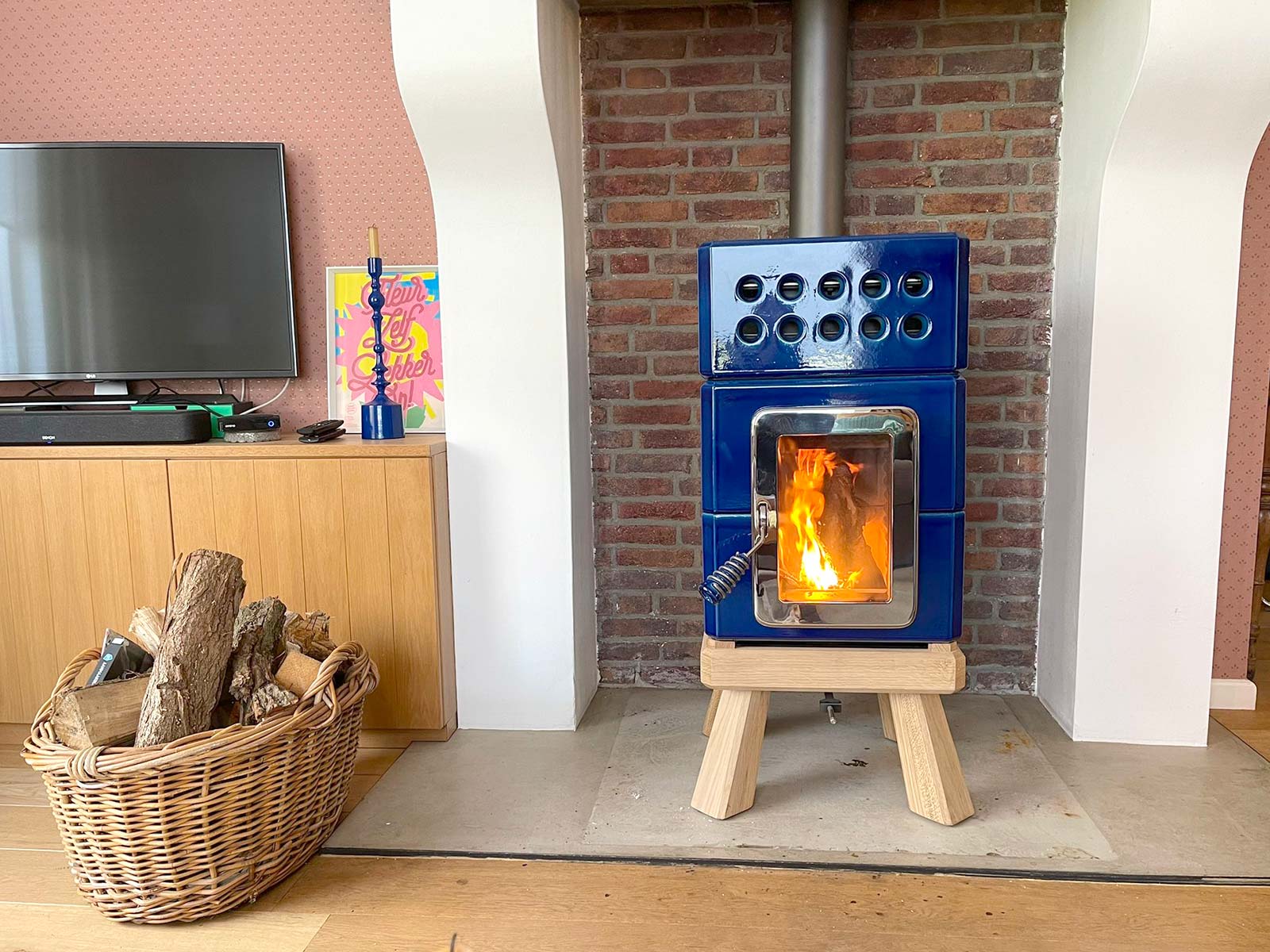

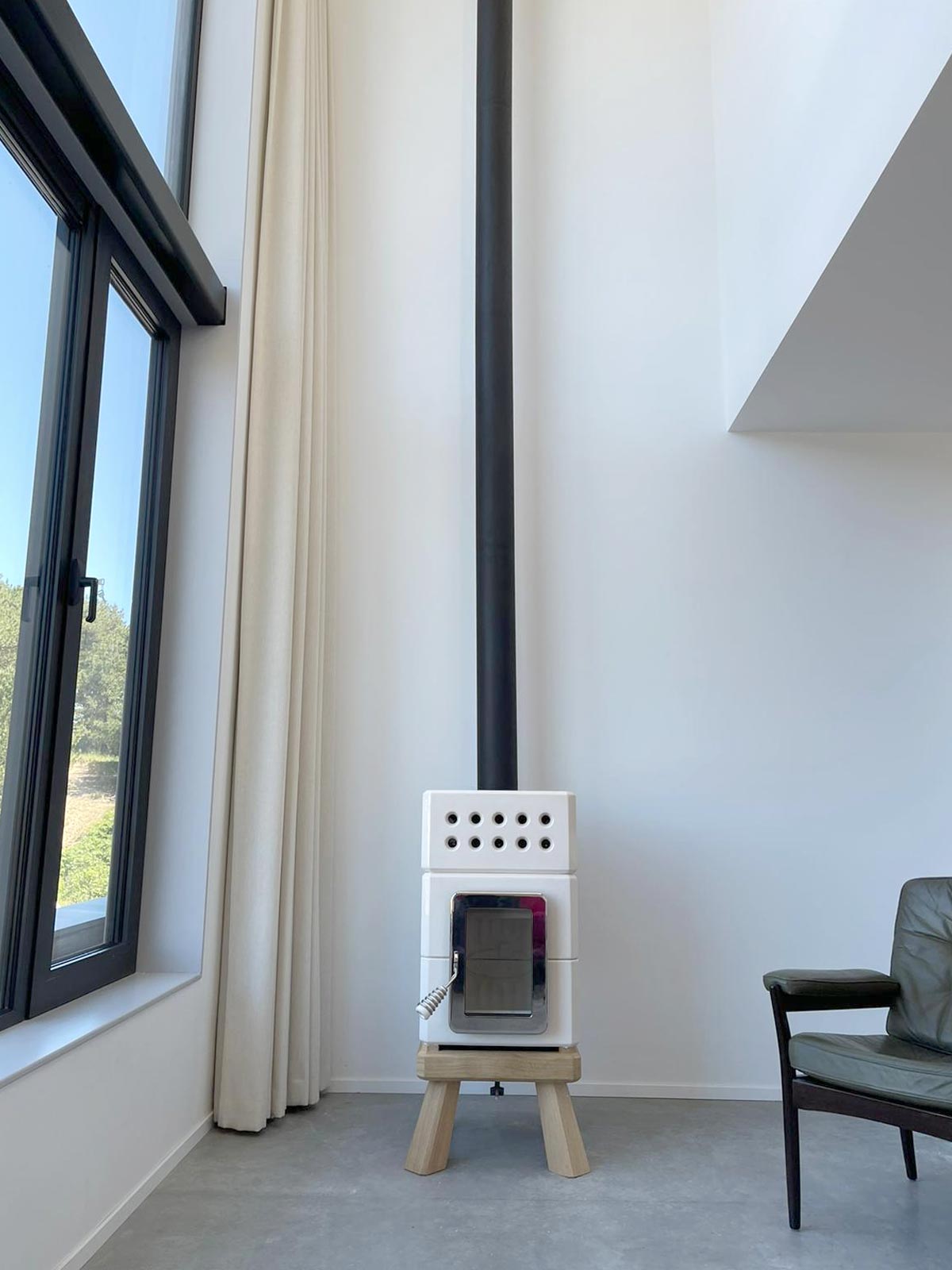

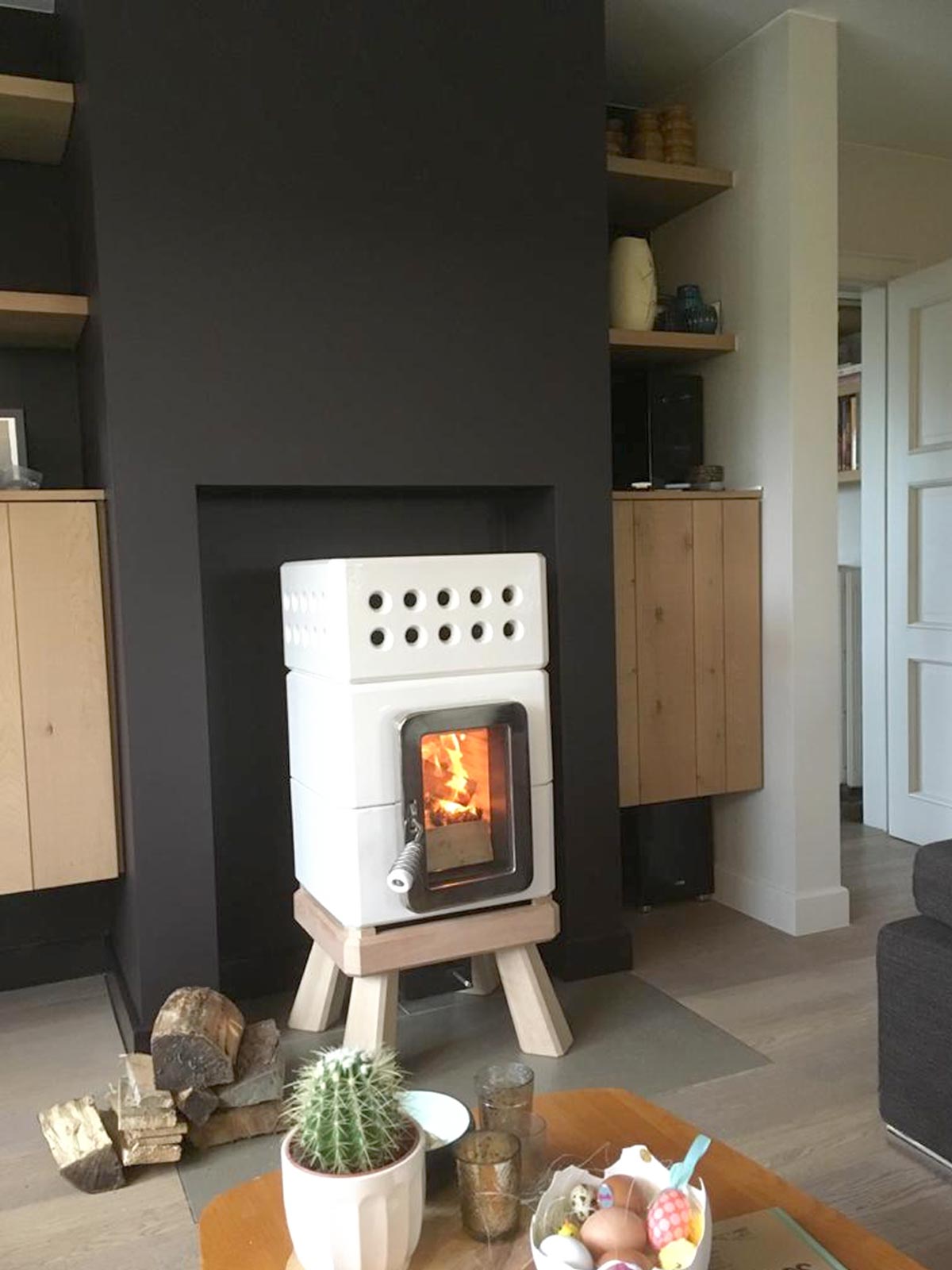

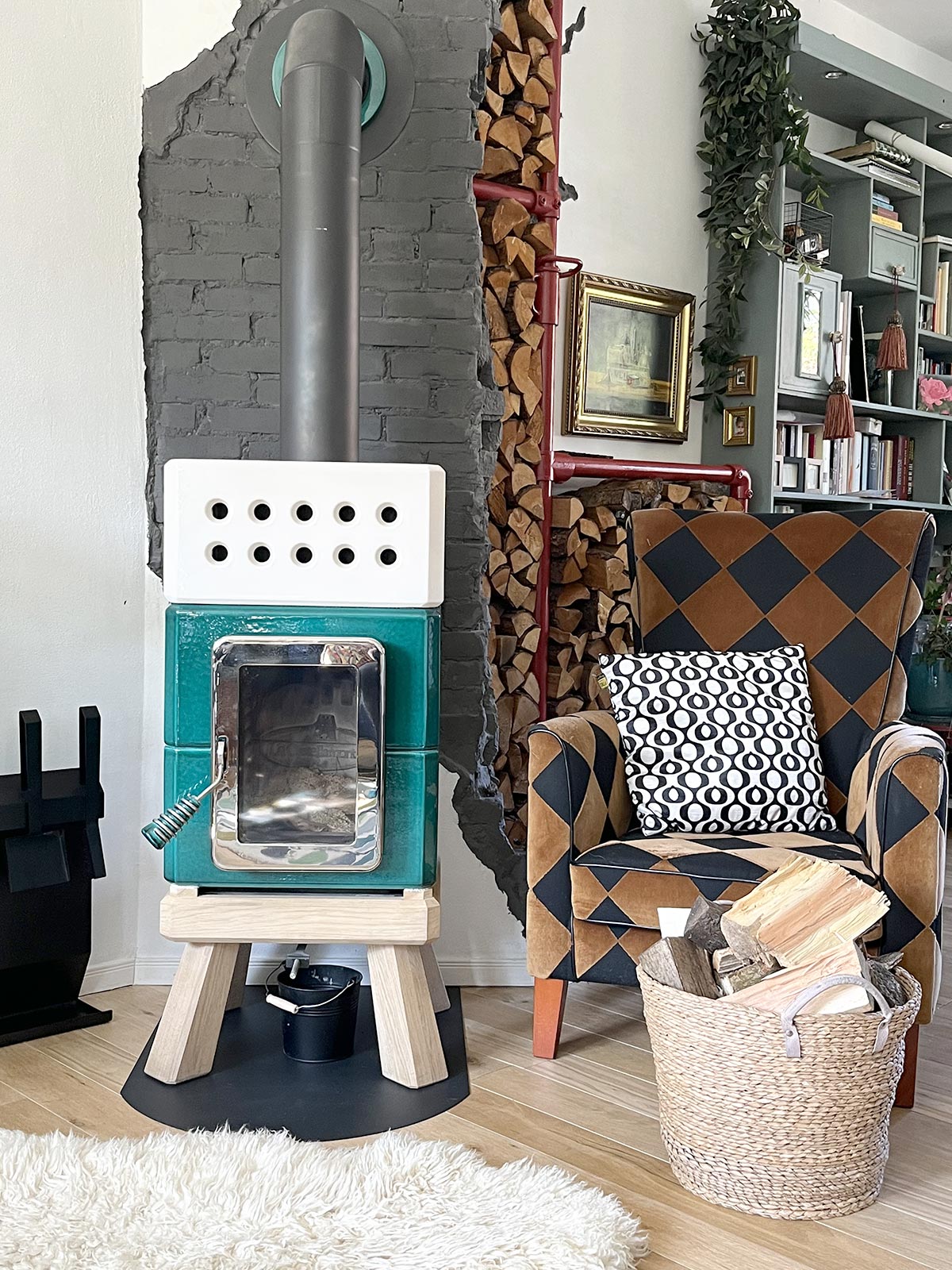

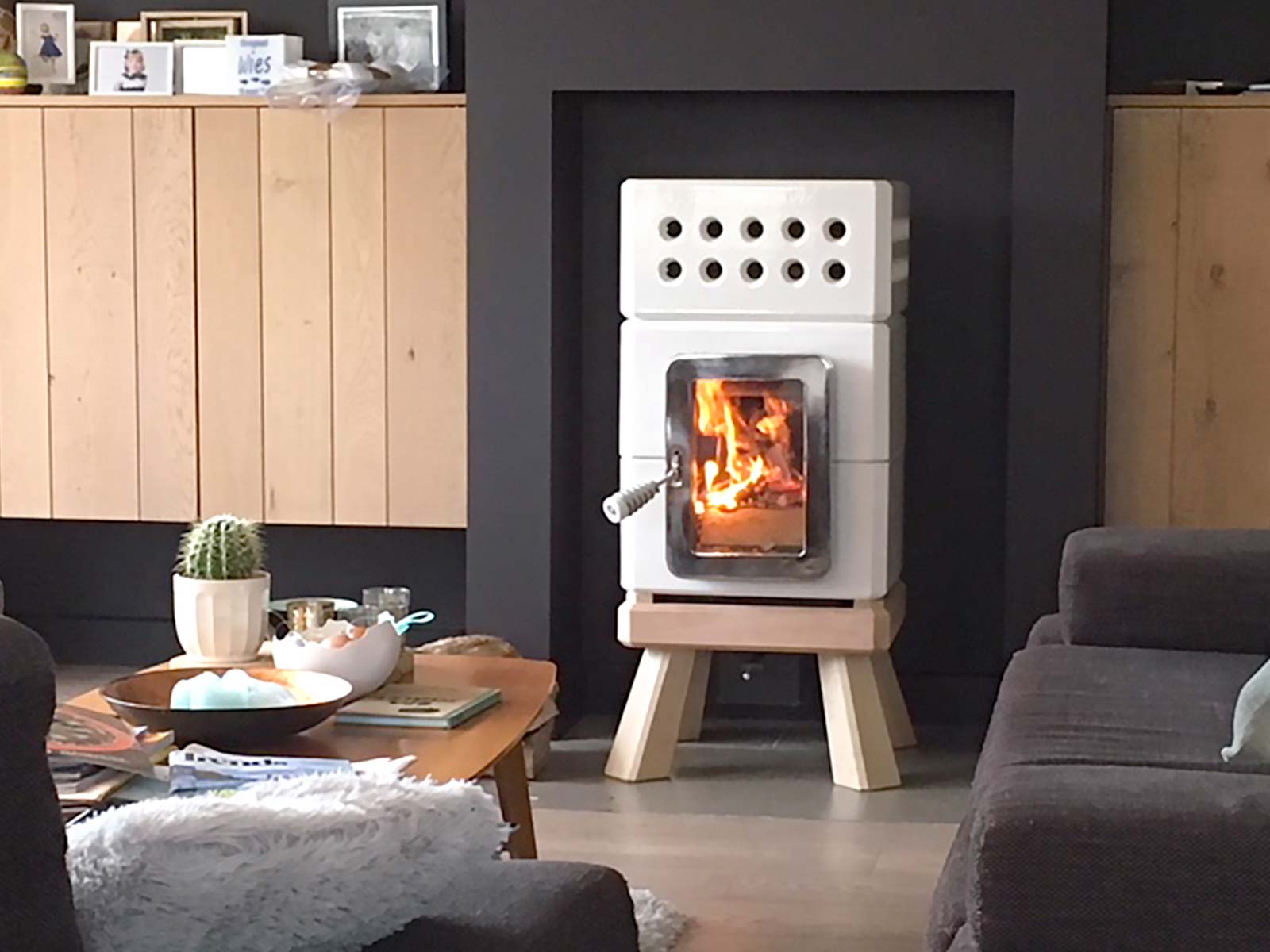

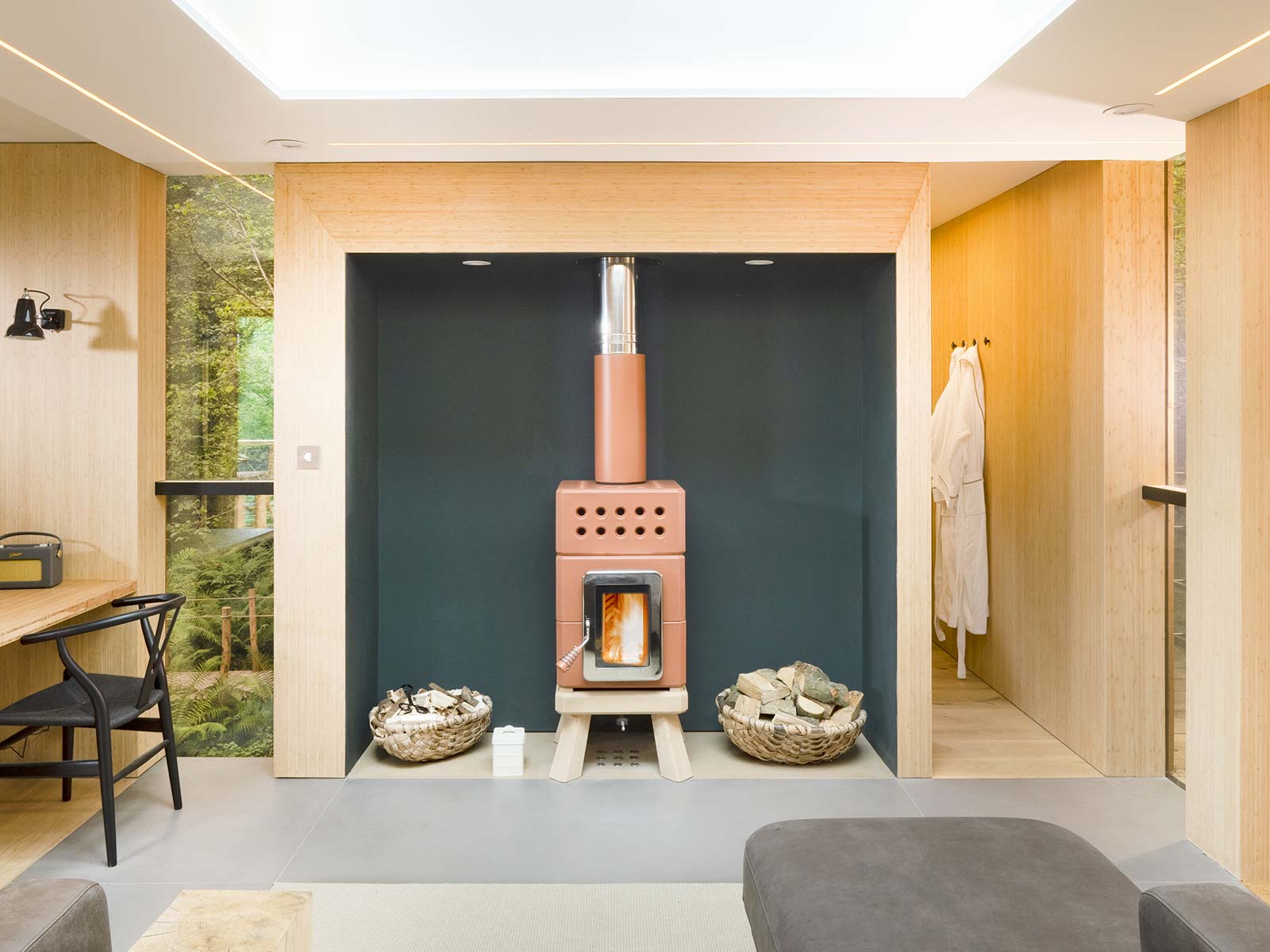

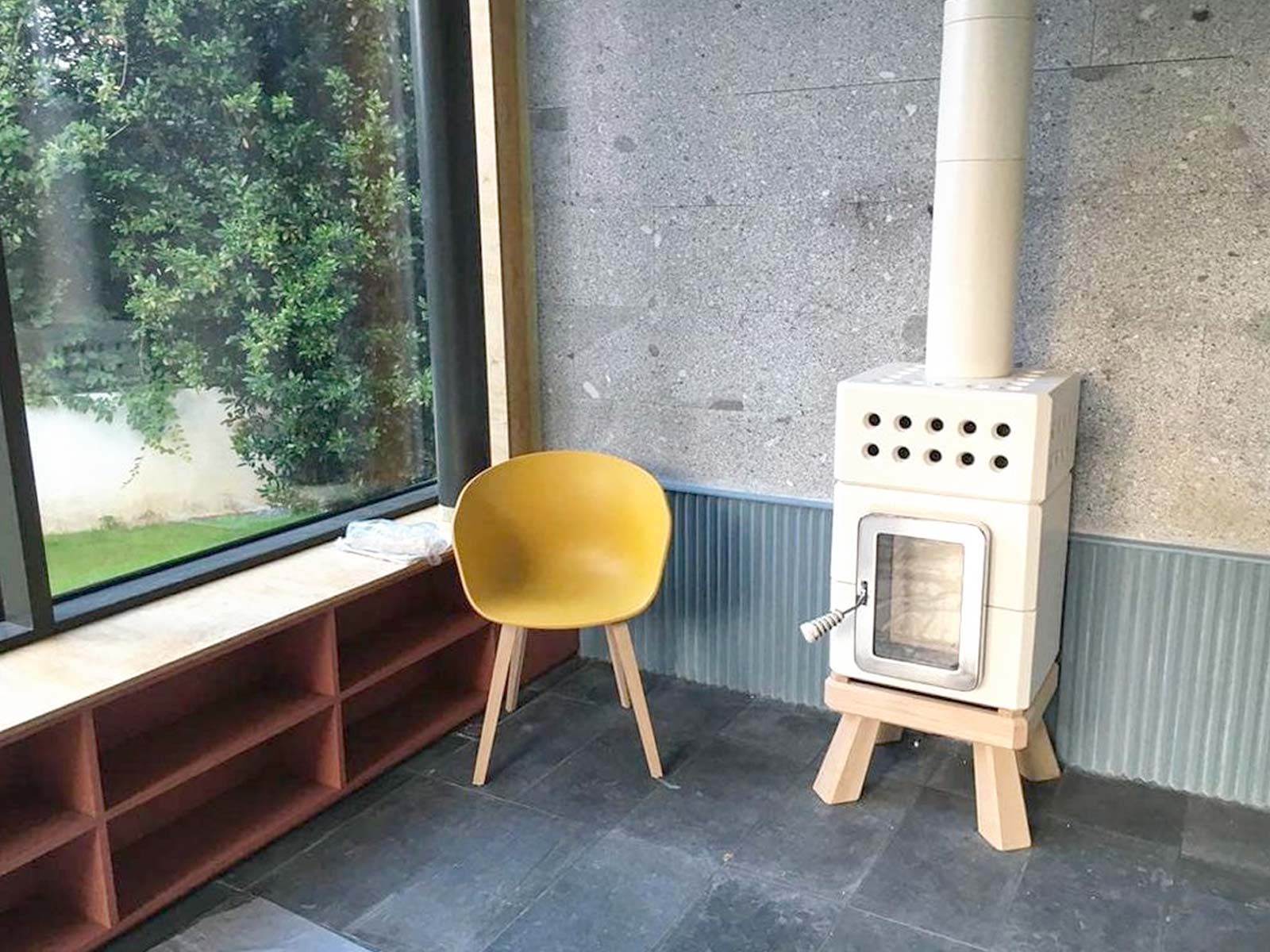

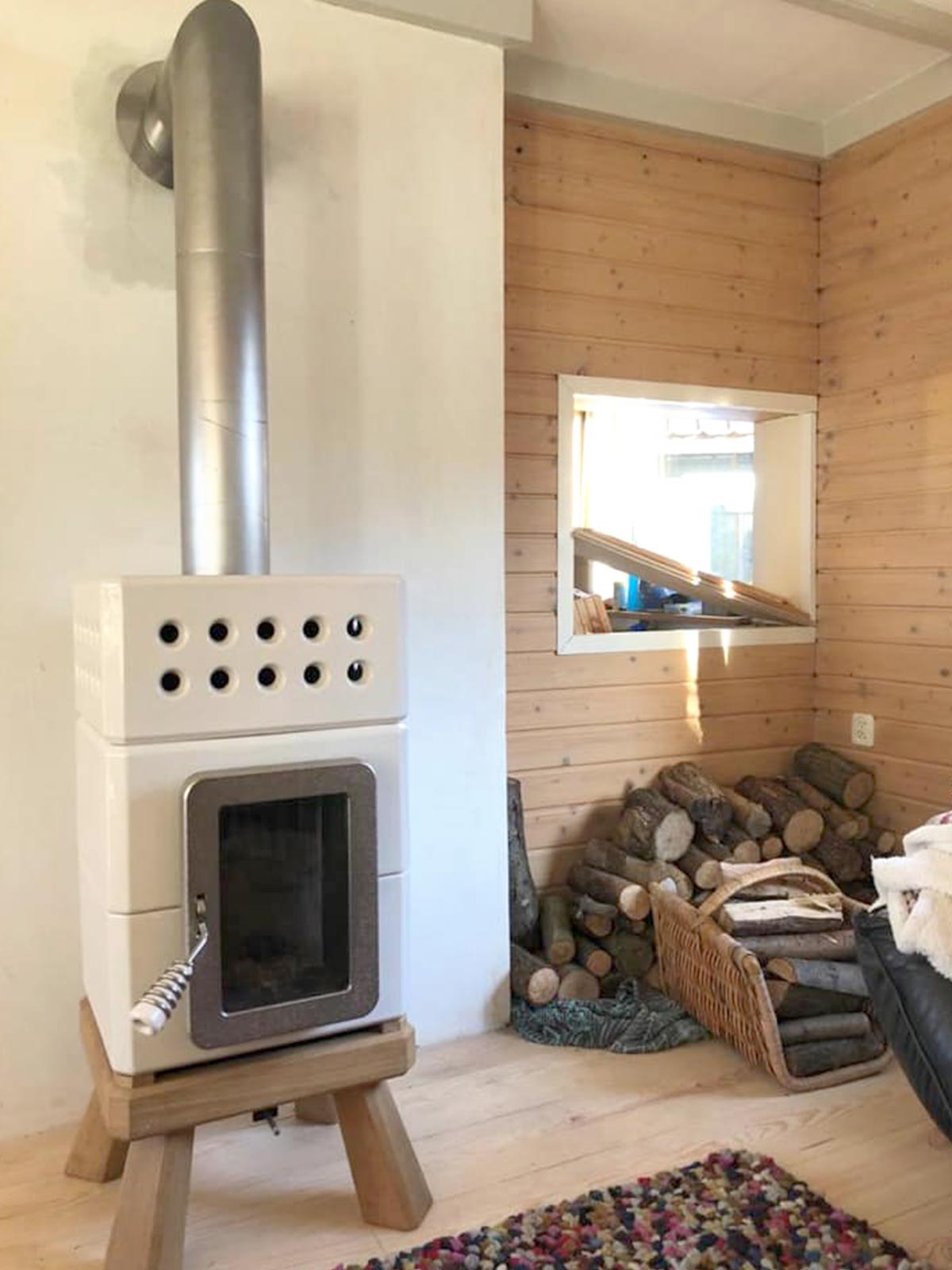

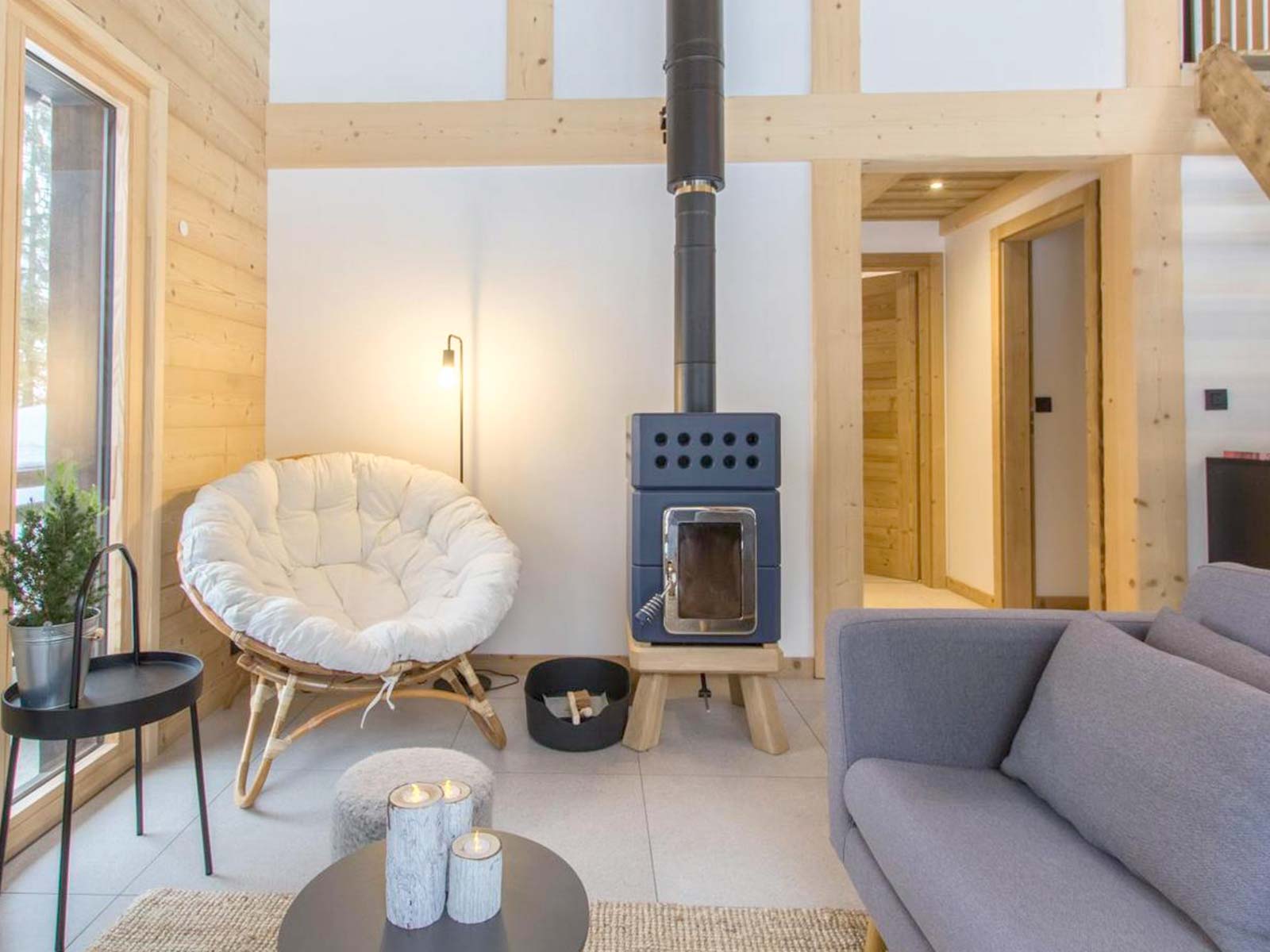

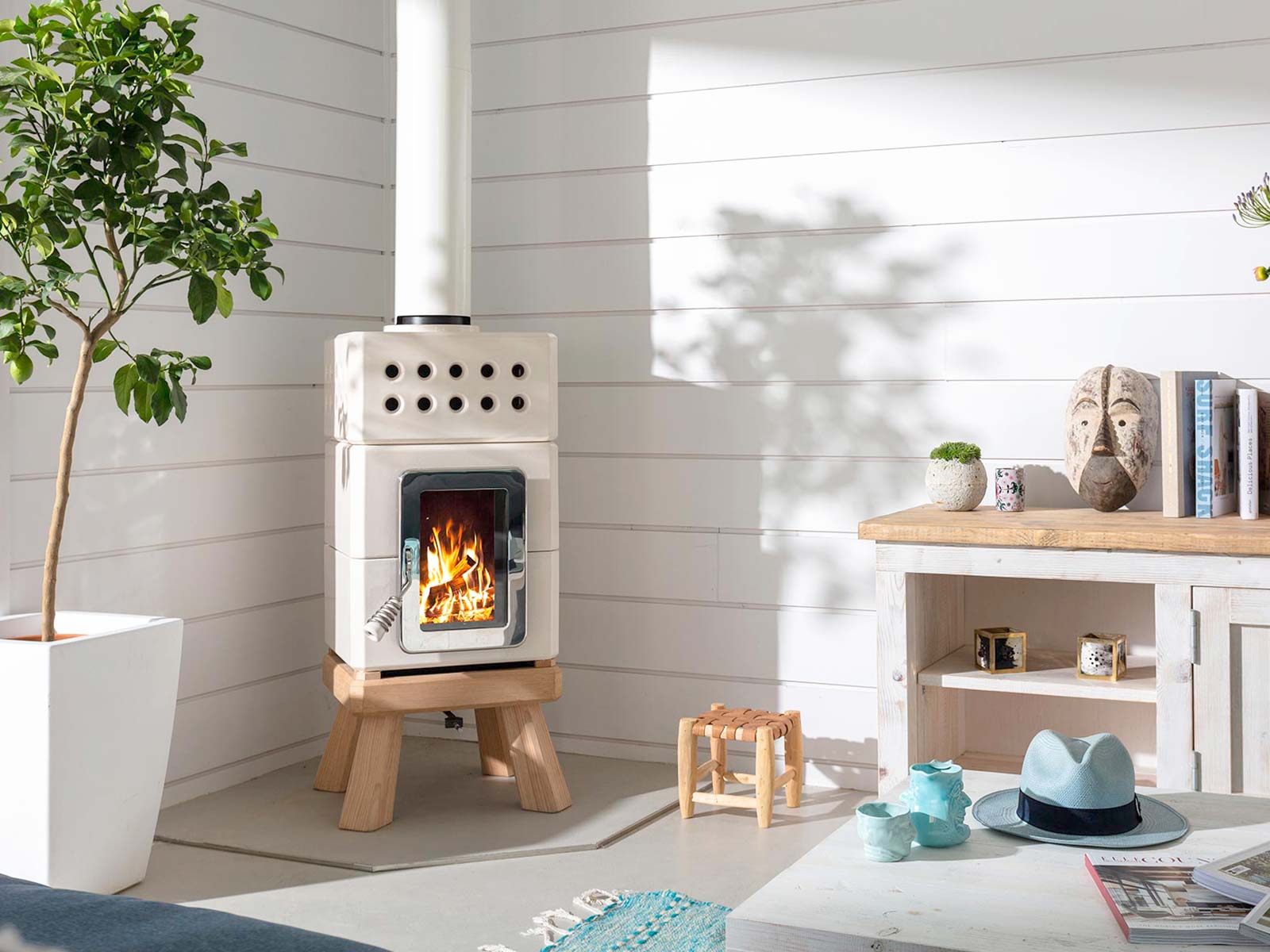

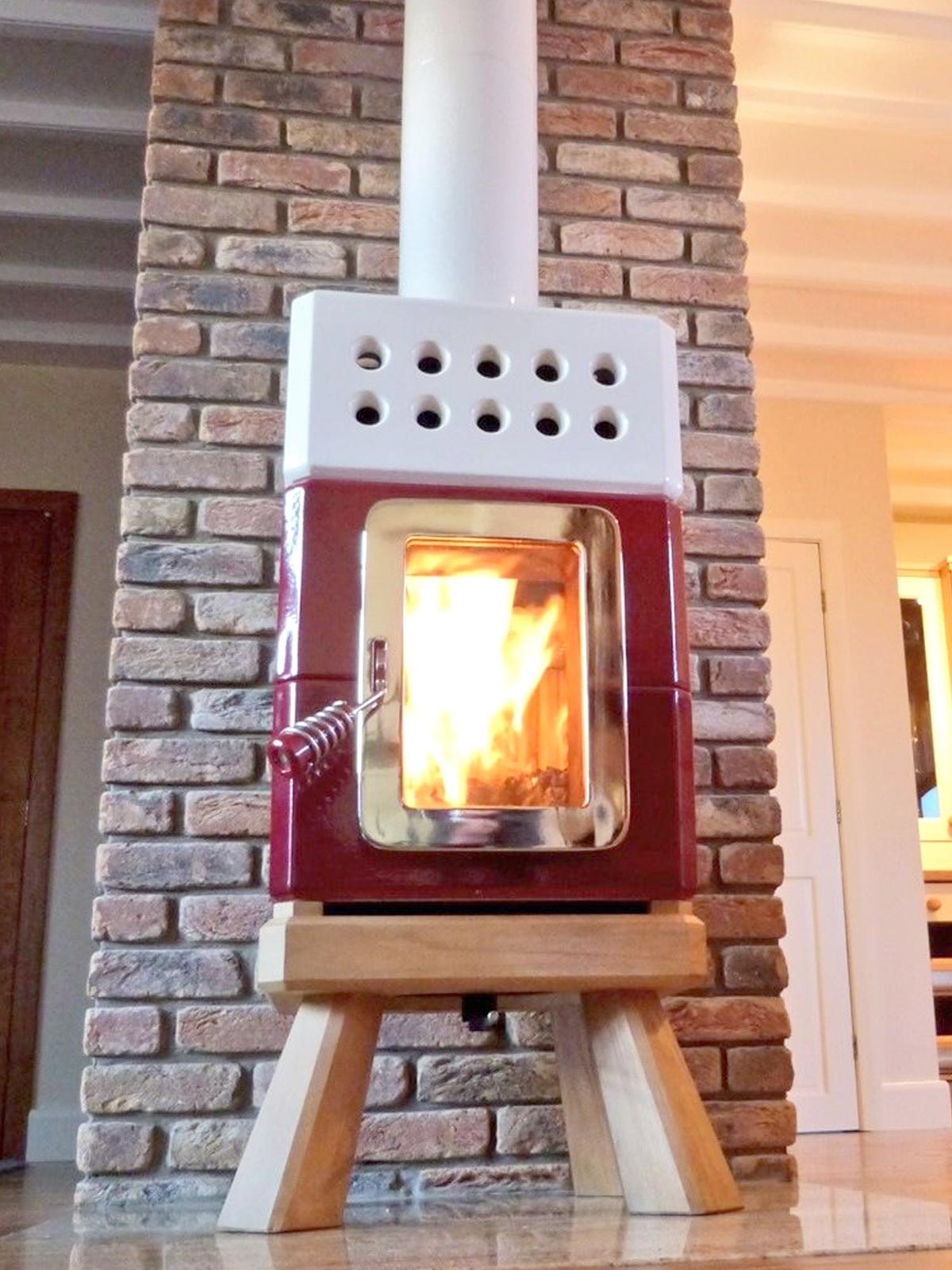

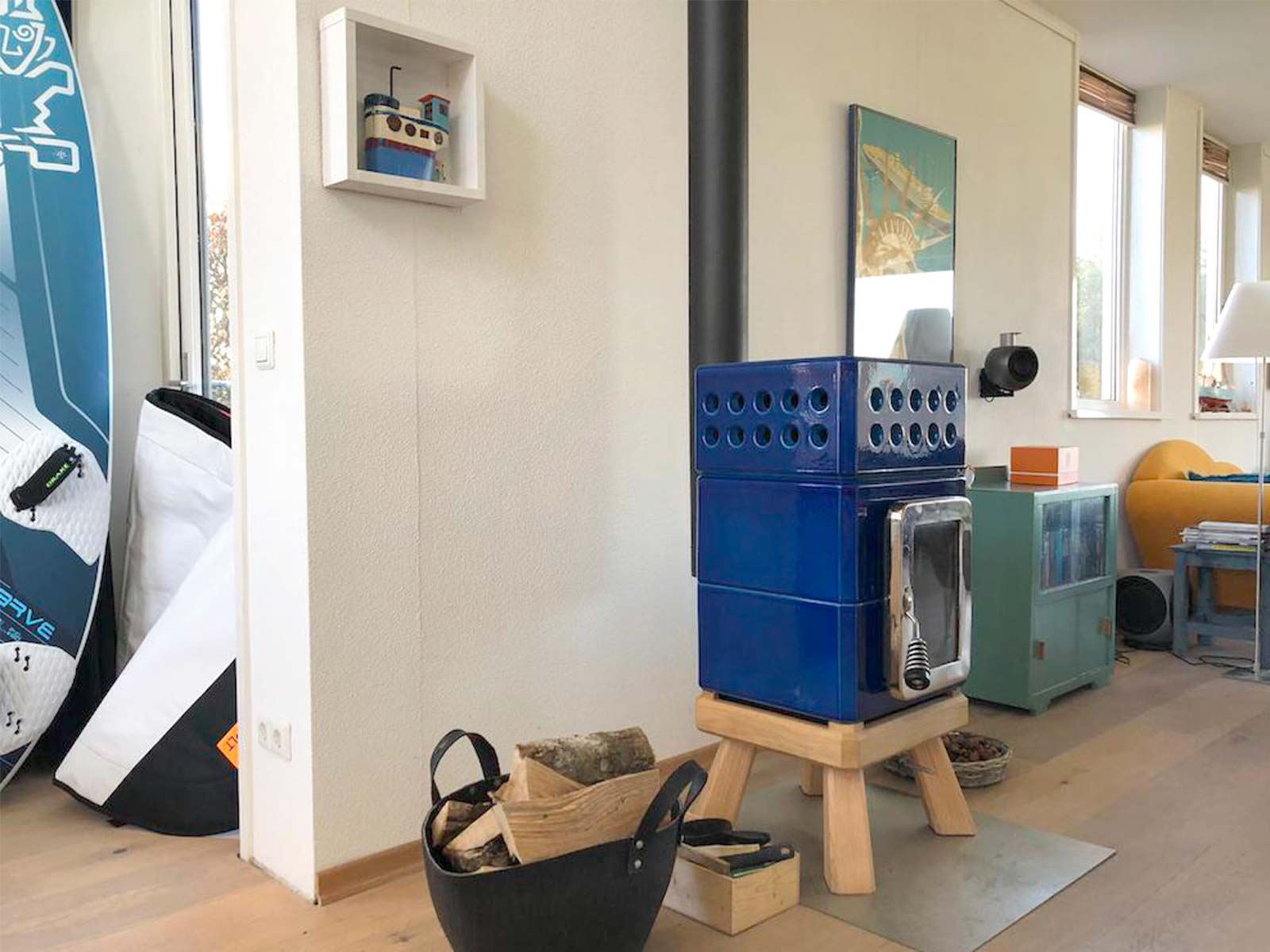

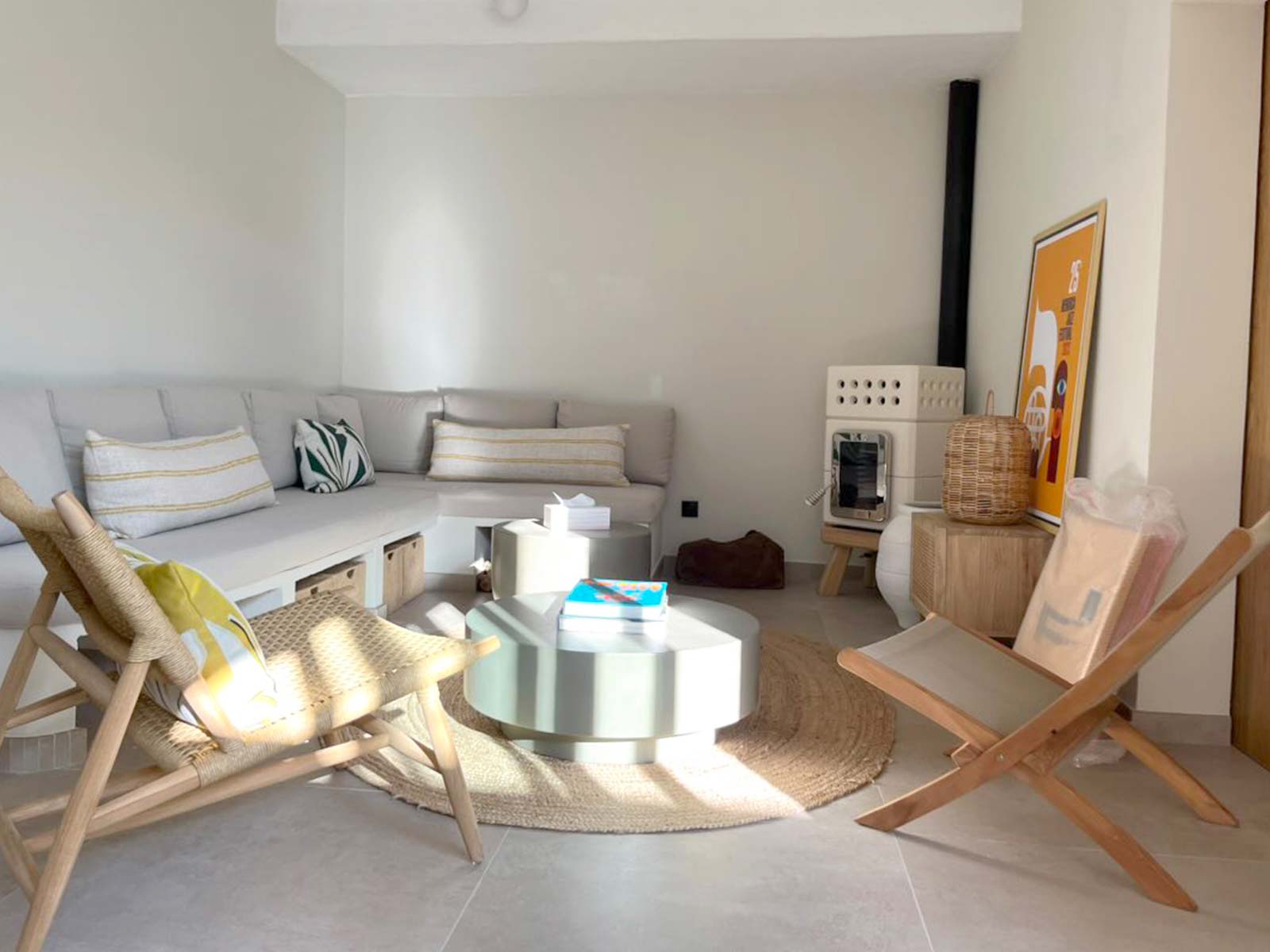

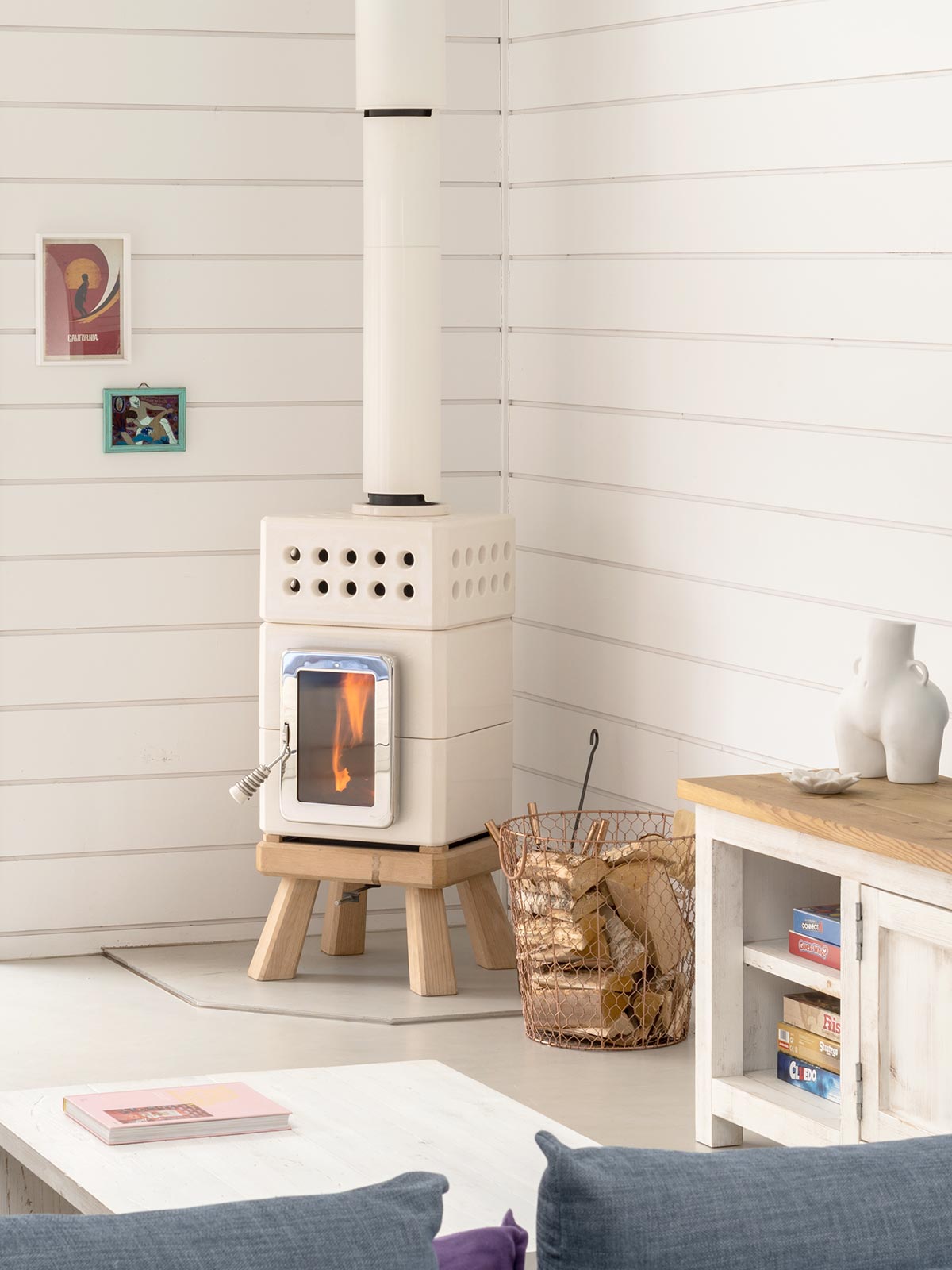

Inspirations
