Onda

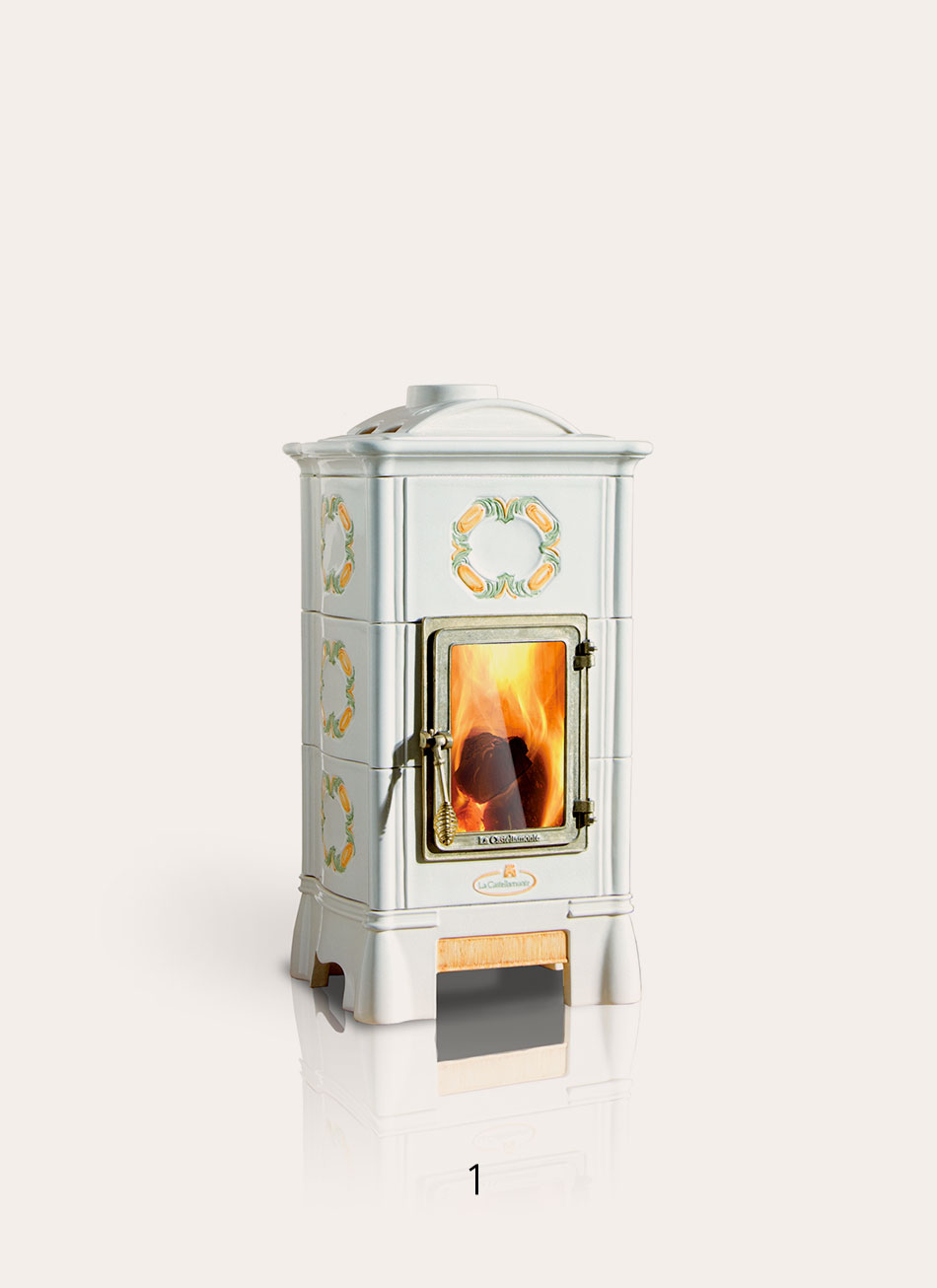

The swaying of the flames on the logs inspired the shape of this graceful stove, which takes up, in its name, the movement of its base and its walls. The upper dome accentuates the rounded shapes that characterize this small-sized stove. It is equipped with a ‘Gran Fuoco’ door, to facilitate the introduction of wood.
It can be equipped with a CARTER FOR EXTERNAL AIR INTAKE.
WOOD burning.
Certifications
| SIZE | 1 | |
|---|---|---|
| Heat Output * | kW | 6 |
| Min-Max Heat Output | kW | 3 - 7 |
| Heating Capacity | m³ | 85 - 200 |
| Efficiency | % | 77 |
| Carbon Monoxide Emission · % Co 13% O2 | % | 0,06 |
| Dust · 13% O2 | mg/Nm³ | 30 |
| Wood Consumption | Kg/h | 1,8 |
| Smoke Temperature | °C | 250 |
| Flue Pipe Diameter | cm | 12 |
| Draft | Pa | 11 |
| Total Weight | Kg | 170 |

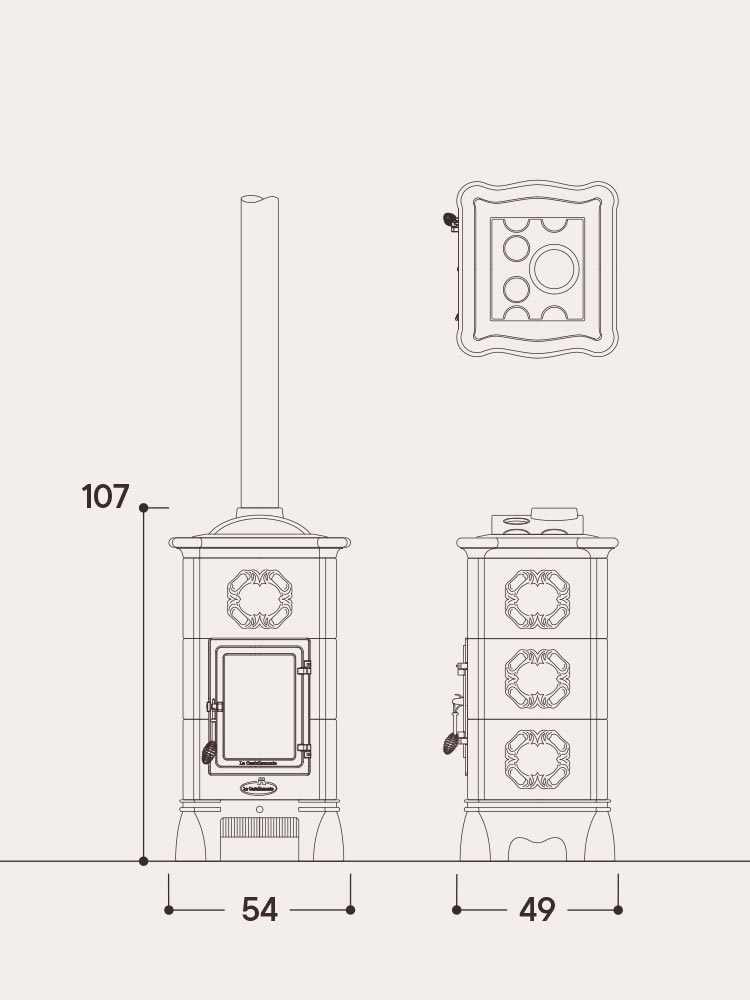

| Measurements (w x d x h) | cm | 54 x 49 x 107 |
| Energy Efficiency | A |
* Complies UNI EN-13240, DEUTSCHLAND BImSchV 2
Inspirations
Details
Scroll through the gallery to discover all the shiny colours.
70 Green
40 Shiny Grey
12 Pink
80 Teal Blu
43 Shiny Black
8 Chestnut
42 Aubergine
5 Bottle Green
11 Emerald Green
31 Sage Green
29 Celadon
10 Cobalt Blue
6 Medium Blue
56 Lavender
44 Turquoise
23 Celeste
34 Cream
33 Shiny White
7 Amaranth
36 Coral Red
1B Rust
1A Caramel
9 Ocher
Scroll through the gallery to discover all the matt colours.
48 Matt Black
35 Mother of Pearl
32 Matt White
51 Yellow
45 Orange
50 Lilac
47 Matt Grey
54 Gray Green
46 Light Green
52 Matt Green
55 Provence Blue
60 Periwinkle
