ThermoStack

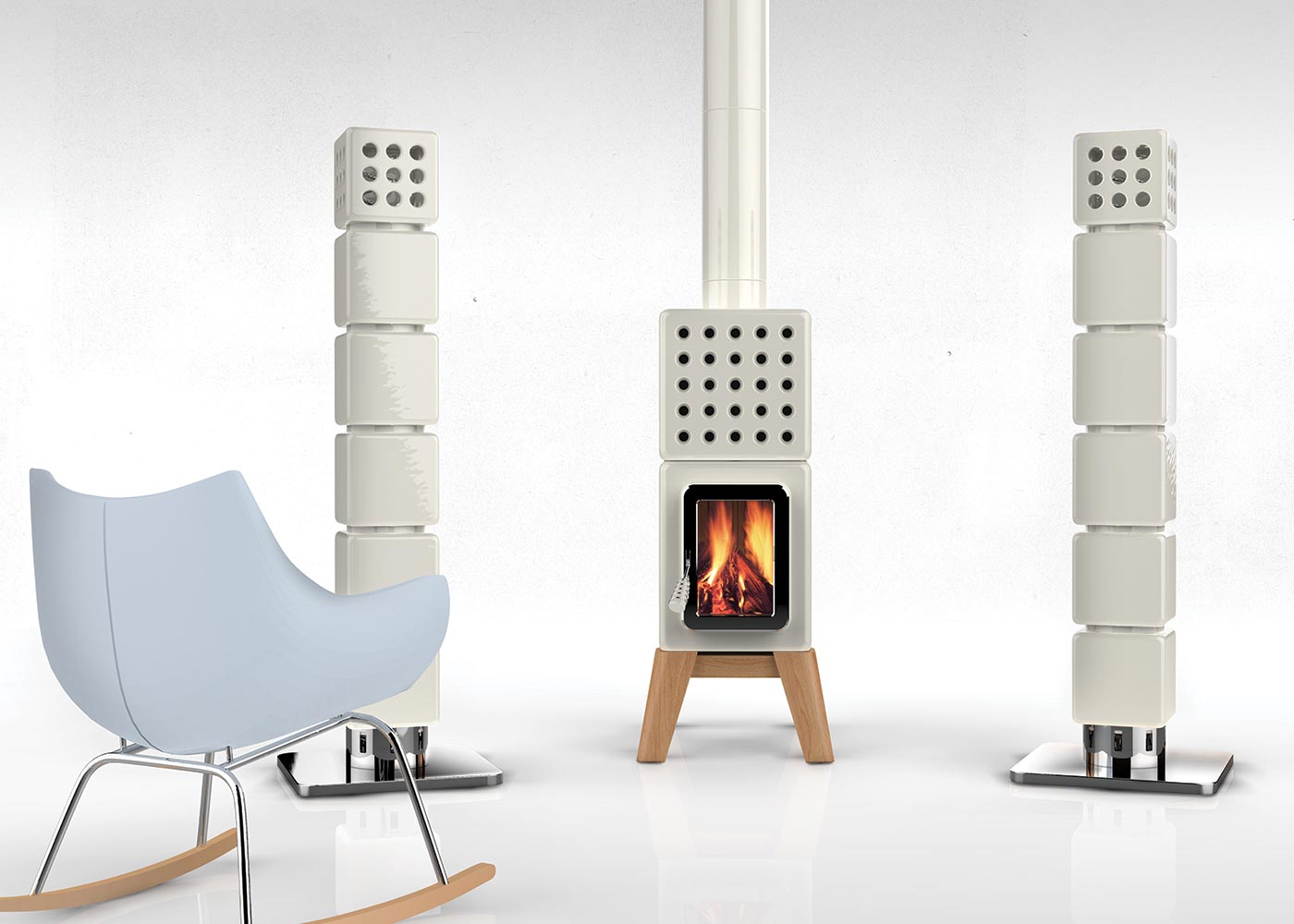

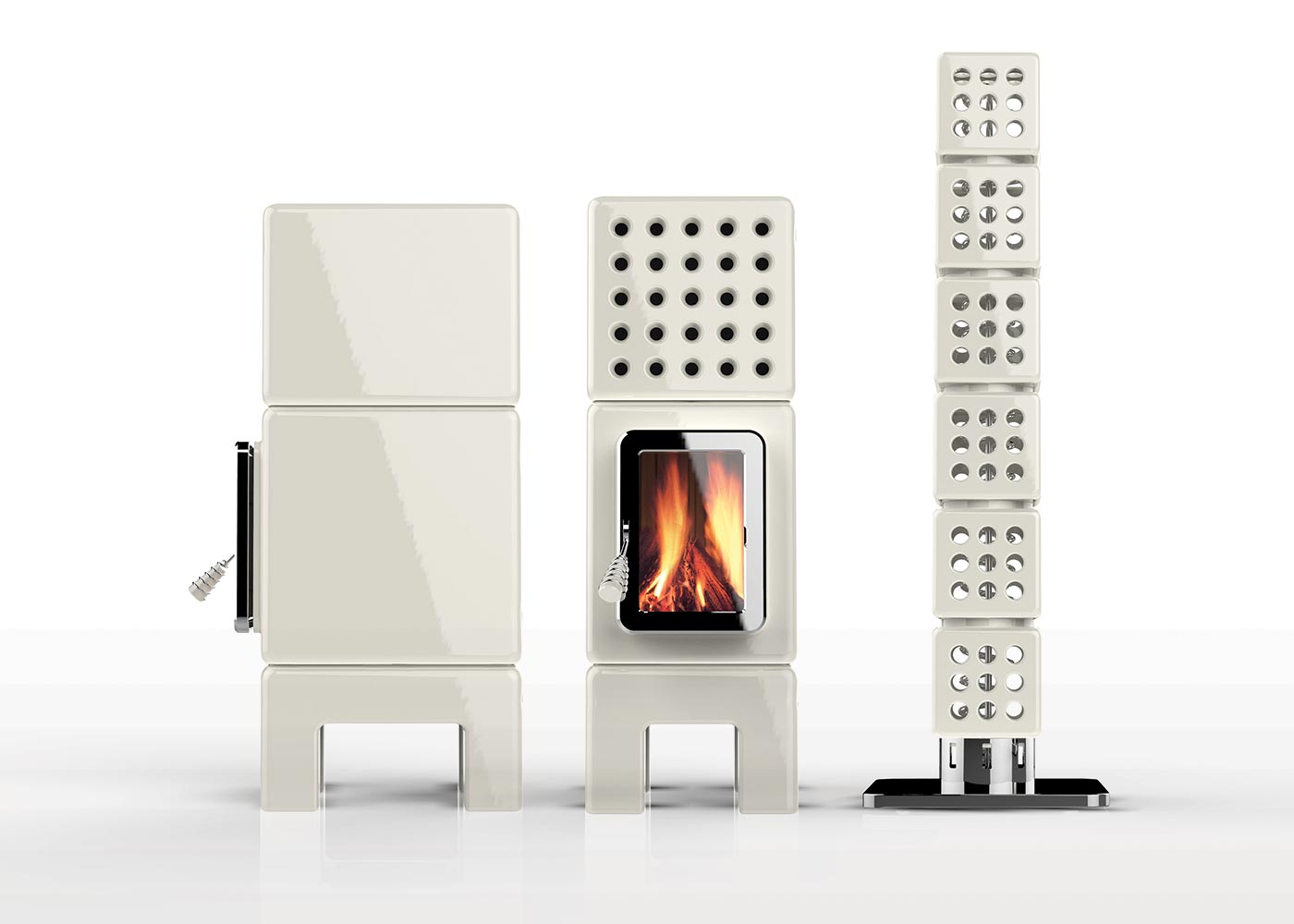

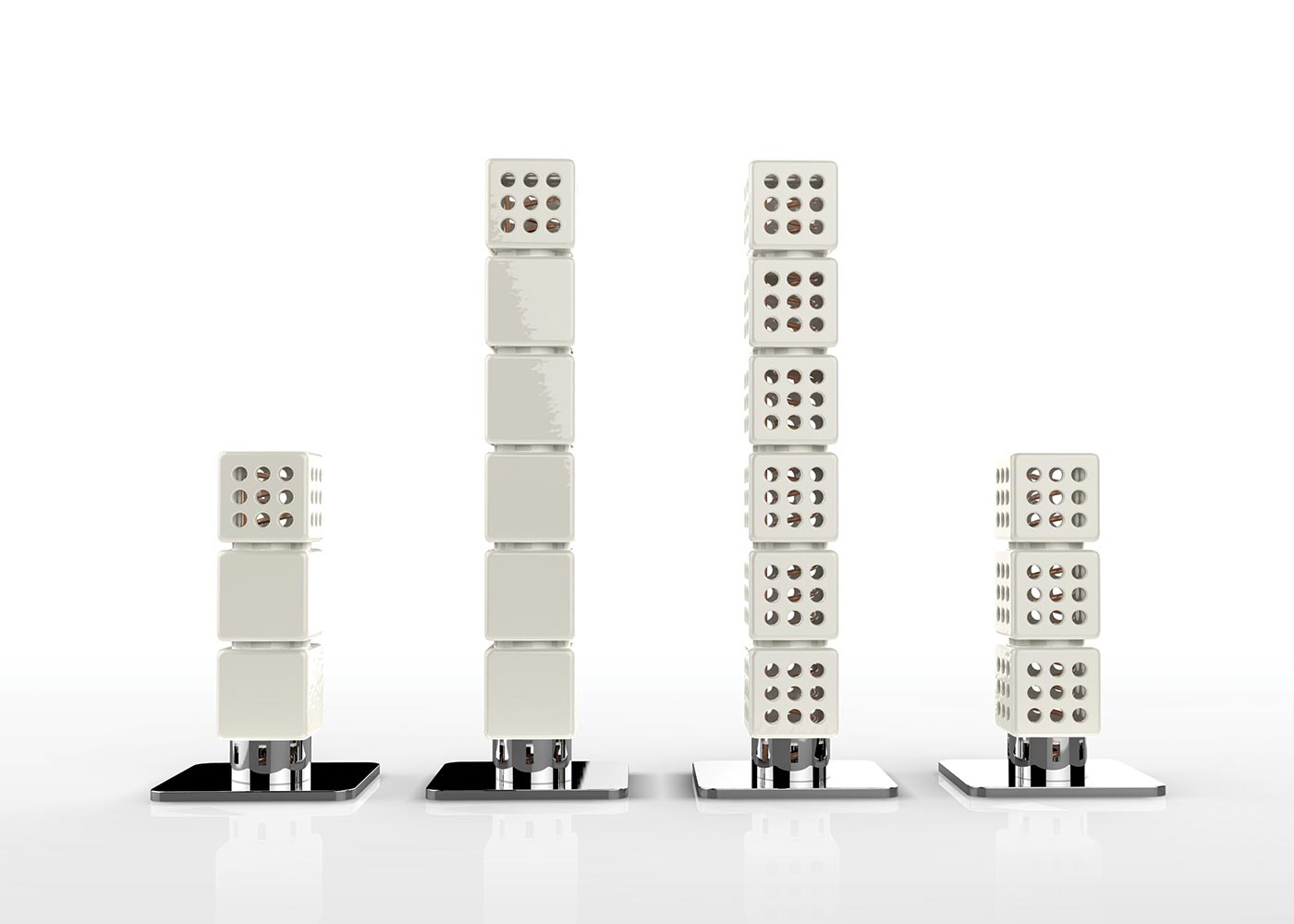

ThermoStack is a stove-radiators heating system (waterstove), revolutionary in architecture and core technology, based on modular components, highly customizable and easy to assemble.
WOOD burning.
Designed by adriano design.

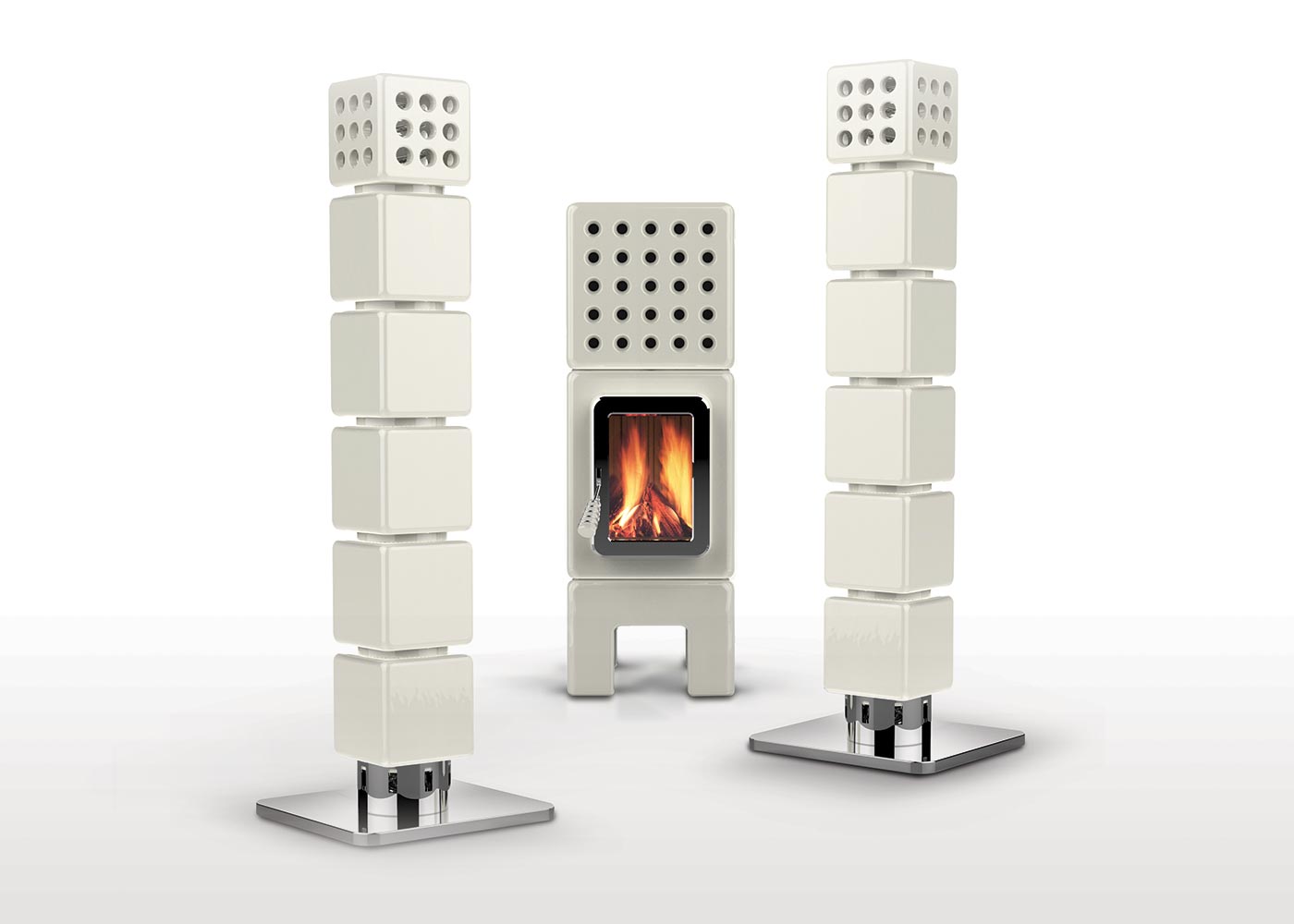

In this way, a set of components can be combined to create stove-radiators systems, different in shapes, colors, architecture and power, allowing the user a high level of customization of the product, according to his needs.
The optimization of the production processes, in addition to the technical excellence of this heating system patented ( Patent n° 0001416182 – May 22nd 2015), allow to define this product as environmentally friendly because it combines, with great attention, all those quality, performance and durability ingredients that are the basis of a true green economy.
Thermo Stack is available in 2 models, depending on the chosen base:
- Wood
- Slim

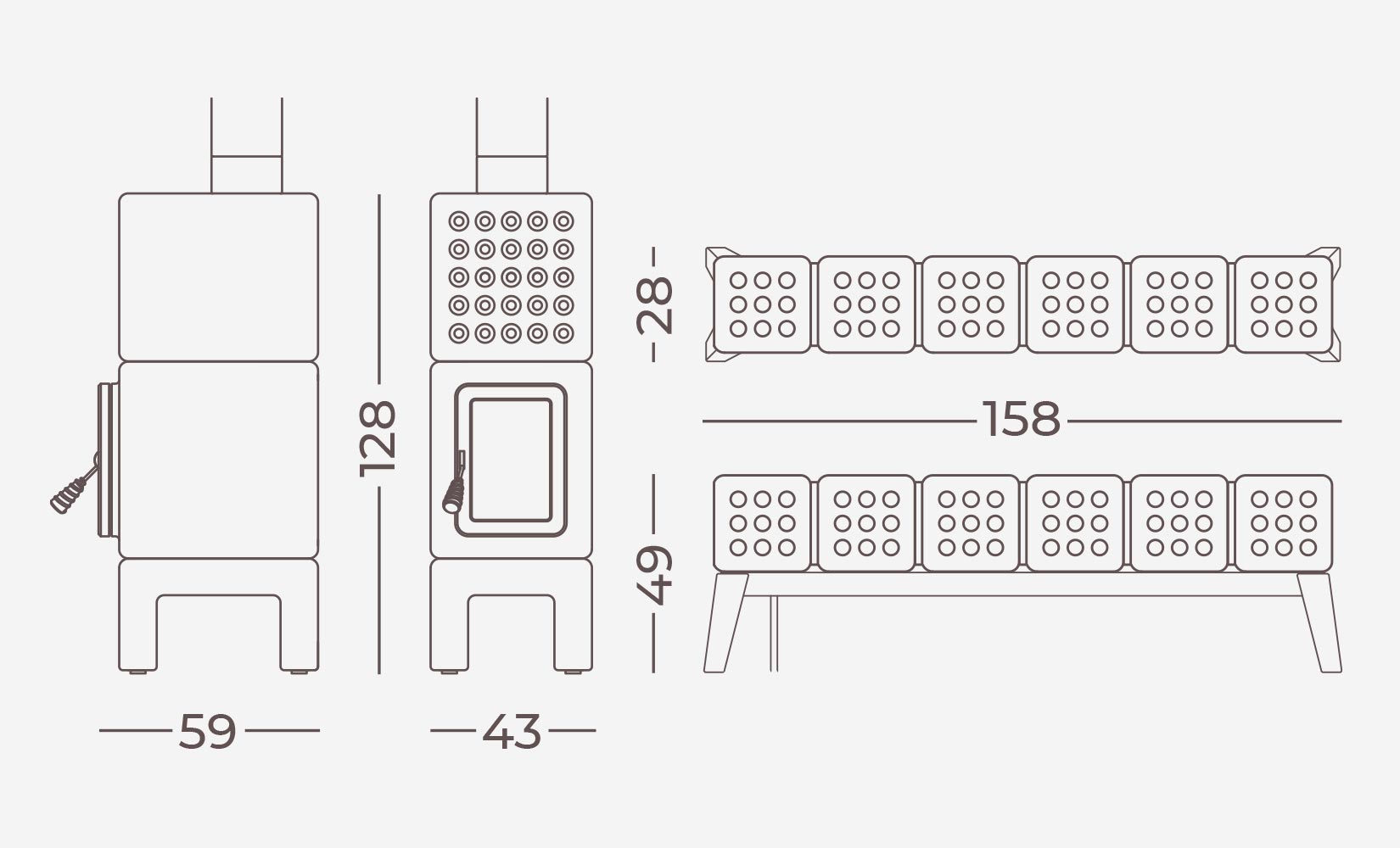

Each model is 128cm high and the base measurements vary according to the model, as indicated in the drawings below.
It heats up to 260 m3 with a nominal heat output of 9 kW, giving 5 kW to convection airand 4 kW for radiators and sanitary water.
Elements
| Heat output * | kW | 7,5 |
|---|---|---|
| Output to air | kW | 5 |
| Output to water | kW | 2,5 |
| Heating capacity | m3 | 260 |
| Efficiency | % | 85,5 |
| Carbon Monoxide emission | % | 0,09 |
| Energy efficiency | A+ |
|
| Dust (13% O2) | Mg/Nm3 | 19 |
| Wood consumption | Kg/h | 2,13 |
| Smoke temperature | °C | 196 |
| Flue pipe diameter | cm | 15 |
| Draft | Pa | 12 |
| Total weight | Kg | 330 |
* Complies UNI EN-13240, DEUTSCHLAND BImSchV 2
Scroll through the gallery to discover all the shiny colours.
Shiny White SK1
Shiny White with Platinum SK1 PT
Shiny Black SK3
Shiny Black with Platinum SK3 PT
Shiny Orange SK12
Shiny Red SK5
Shiny Blue SK11
Shiny Green SK9
Scroll through the gallery to discover all the matt colours.
Matt White SK2
Matt White with Platinum SK2 PT
Matt Black SK4
Matt Black with Platinum SK4 PT
Matt Orange SK13
Matt Bordeaux SK6
Matt Blue SK8
Matt GreenSK7
Matt Acid Green SK20
Metallic Bronze SK10
