Vienna
Vienna is the flagship of our production.
Suitable for large spaces, linear, square in shape, it fits harmoniously into any type of environment.
It is available in four sizes with a ‘Gran Fuoco’ door and with two ceramic surface options: with a rich ornament or smooth.
It can be equipped with a CARTER FOR EXTERNAL AIR INTAKE.
WOOD burning.
Certifications
Photo Gallery
Smooth
With friezes on base and lid
| SIZE | 1 | 2 | 3 | 4 | |
|---|---|---|---|---|---|
| Heat Output * | kW | 11 | 12 | 13 | 13 |
| Min-Max Heat Output | % | 5 - 12 | 6 - 13 | 6 - 14 | 6 - 14 |
| Heating Capacity | % | 140 - 320 | 170 - 370 | 170 - 400 | 170 - 400 |
| Efficiency | mg/Nm³ | 84 | 85 | 85 | 85 |
| Carbon Monoxide Emission · % Co 13% O2 | Kg/h | 0,06 | 0,07 | 0,08 | 0,08 |
| Dust · 13% O2 | °C | 14 | 18 | 21 | 21 |
| Wood Consumption | cm | 2,7 | 3 | 3,2 | 3,2 |
| Smoke Temperature | Pa | 250 | 253 | 255 | 255 |
| Flue Pipe Diameter | Kg | 15 | 15 | 15 | 15 |
| Draft | Kg | 12 | 12 | 12 | 12 |
| Total Weight | Kg | 410 | 440 | 470 | 530 |
| Ceramic Column Weight | cm | 25 | 25 | 25 | 25 |

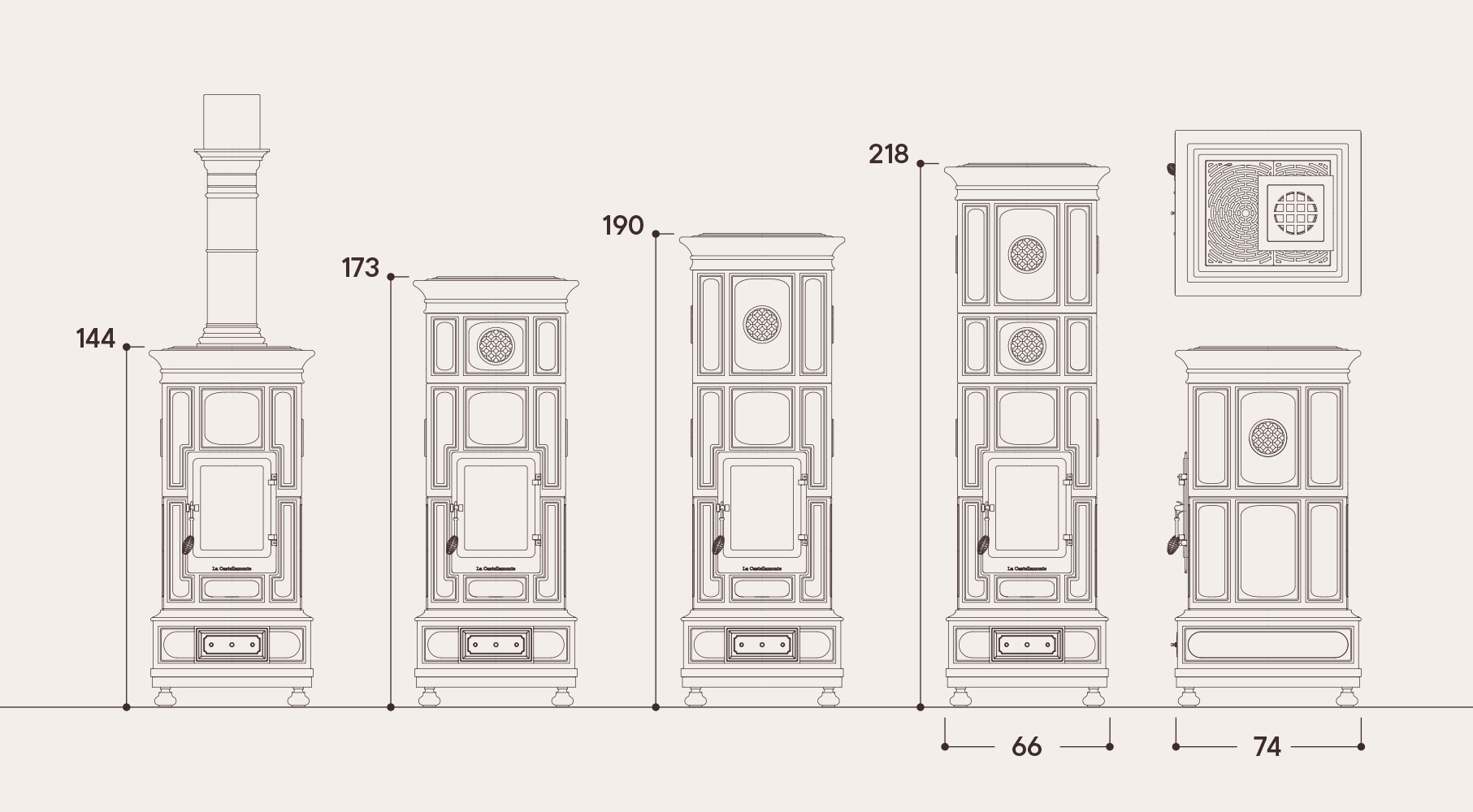

| Measurements (w x d x h) | cm | 66 x 74 x 144 | 66 x 74 x 173 | 66 x 74 x 190 | 66 x 74 x 218 |
| Energy Efficiency | A + | A + | A + | A + |
* Complies UNI EN-13240, DEUTSCHLAND BImSchV 2
The stove can have higher performances, in terms of kW, up to a maximum heatable volume of 340 m3, in the largest size, with medium insulation.
| SIZE | 1 | 2 | 3 | 4 | |
|---|---|---|---|---|---|
| Heat Output * | kW | 8,3 | 8,66 | 9 | 9,19 |
| Efficiency | mg/Nm³ | 87,7 | 90,8 | 89,7 | 89,7 |
| Carbon Monoxide Emission · % Co 13% O2 | Kg/h | 0,0219 | 0,0219 | 0,0241 | 0,0241 |
| Dust · 13% O2 | °C | 9,8 | 8,3 | 10 | 10 |
| Wood Consumption | cm | 2,2 | 2,24 | 2,3 | 2,409 |
| Smoke Temperature | Pa | 185 | 148 | 148 | 148 |
| Flue Pipe Diameter | Kg | 15 | 15 | 15 | 15 |
| Draft | Kg | 11 | 12 | 10 | 10 |
| Total Weight | Kg | 410 | 440 | 470 | 530 |
| Ceramic Column Weight | cm | 25 | 25 | 25 | 25 |
| Measurements (w x d x h) | cm | 66 x 74 x 144 | 66 x 74 x 173 | 66 x 74 x 190 | 66 x 74 x 218 |
| Energy Efficiency | A + | A + | A + | A + |
* Complies UNI EN-13240, DEUTSCHLAND BImSchV 2
The stove can have higher performances, in terms of kW, up to a maximum heatable volume of 340 m3, in the largest size, with medium insulation.
