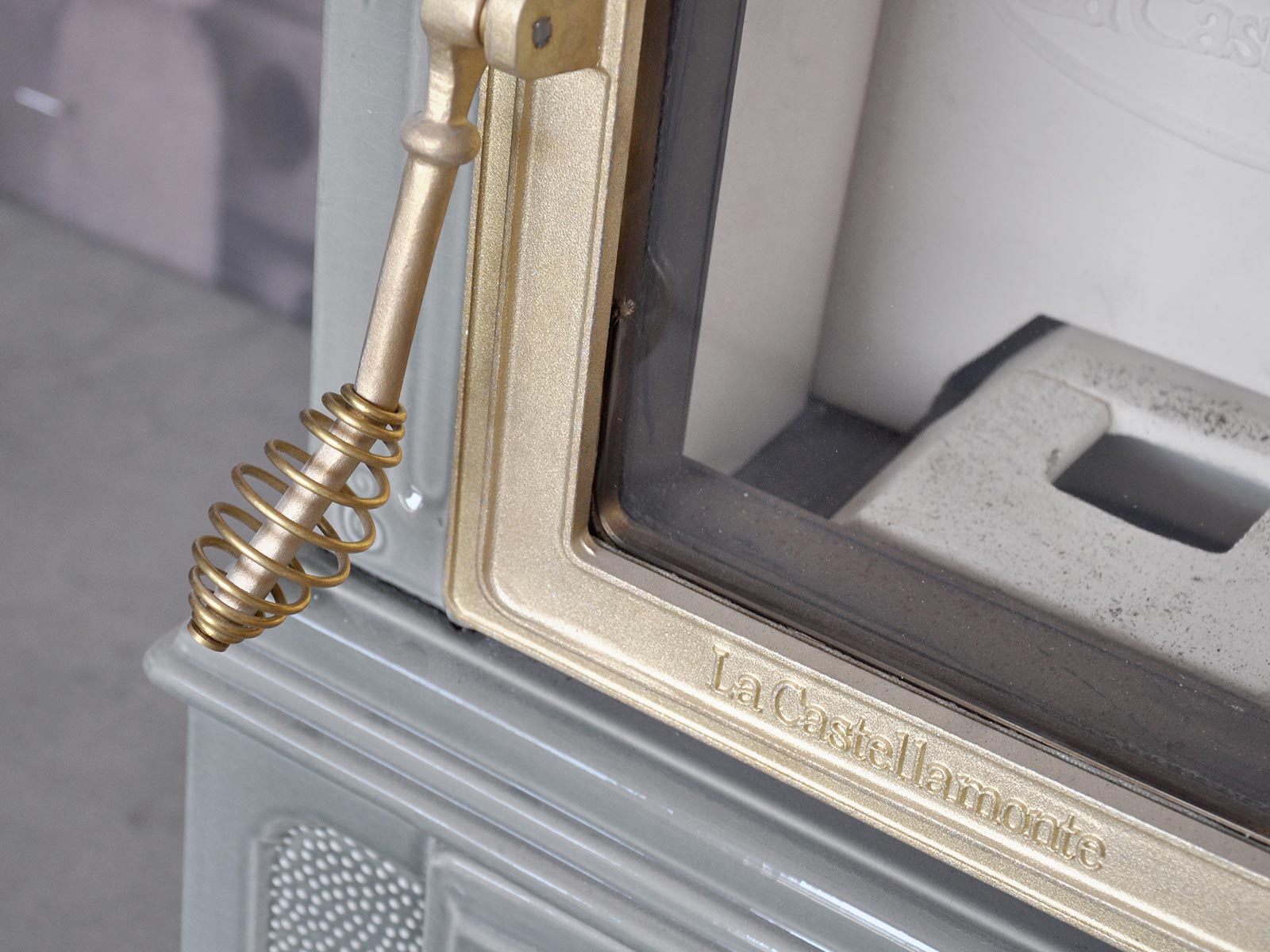

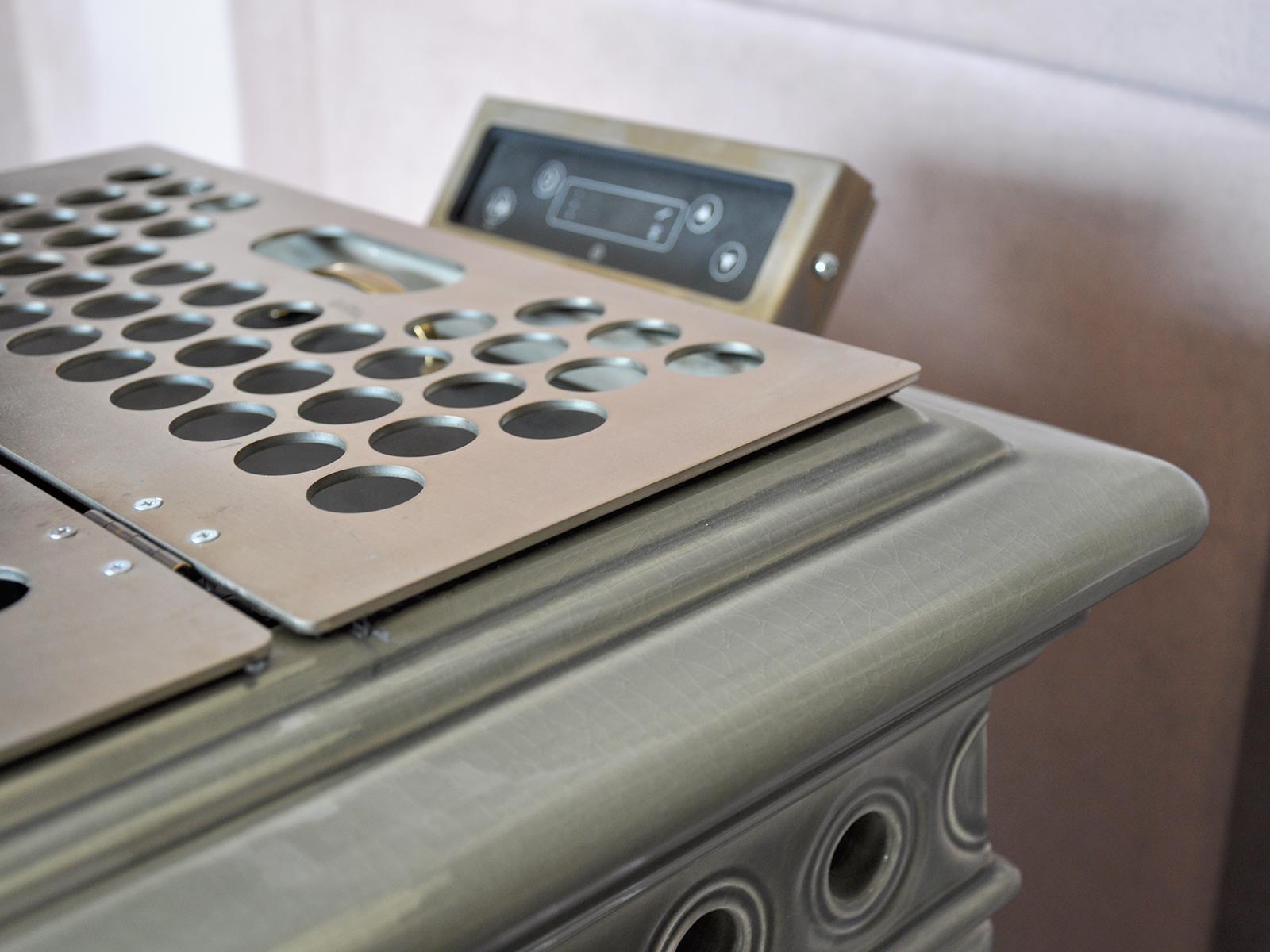

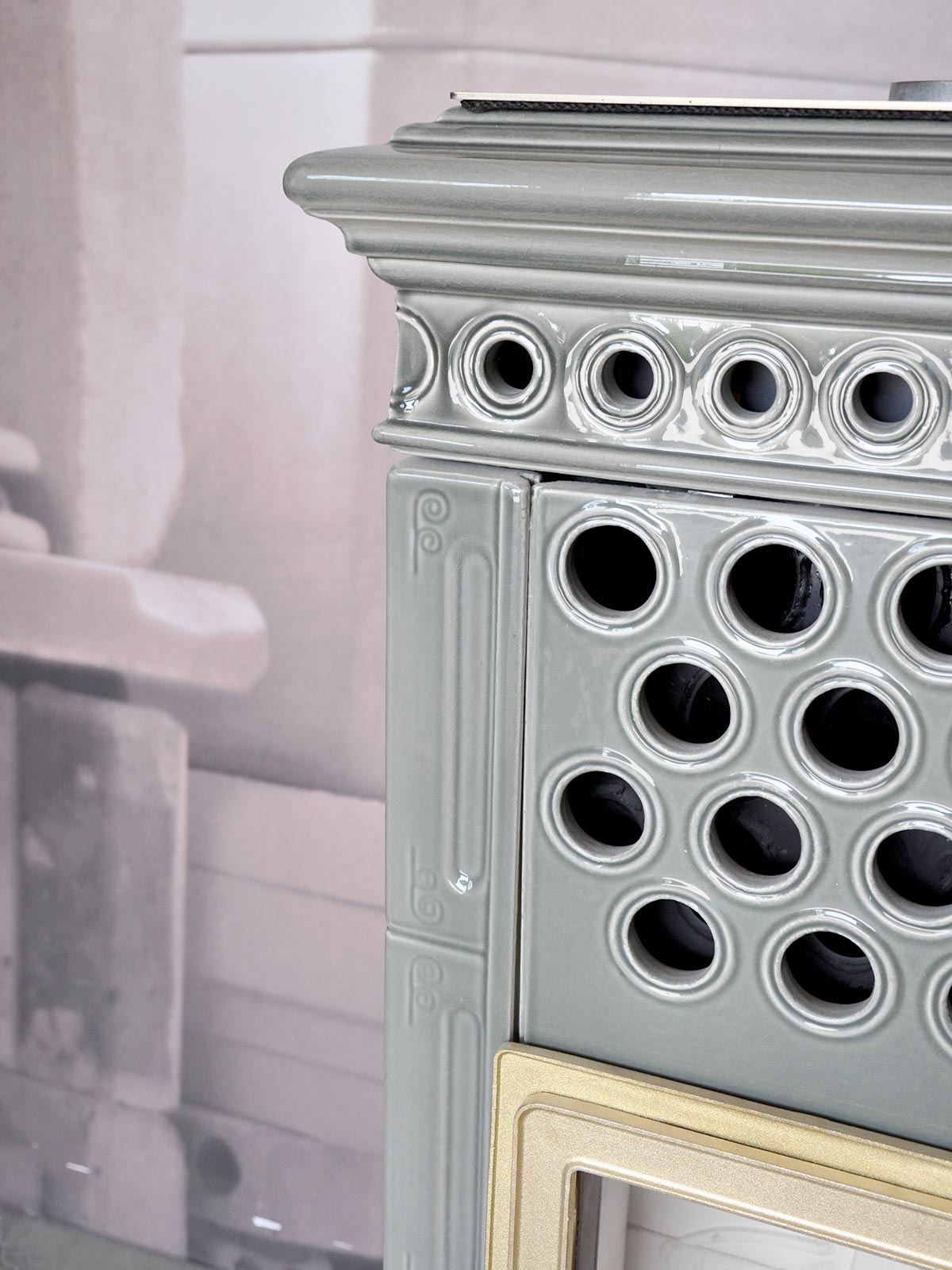

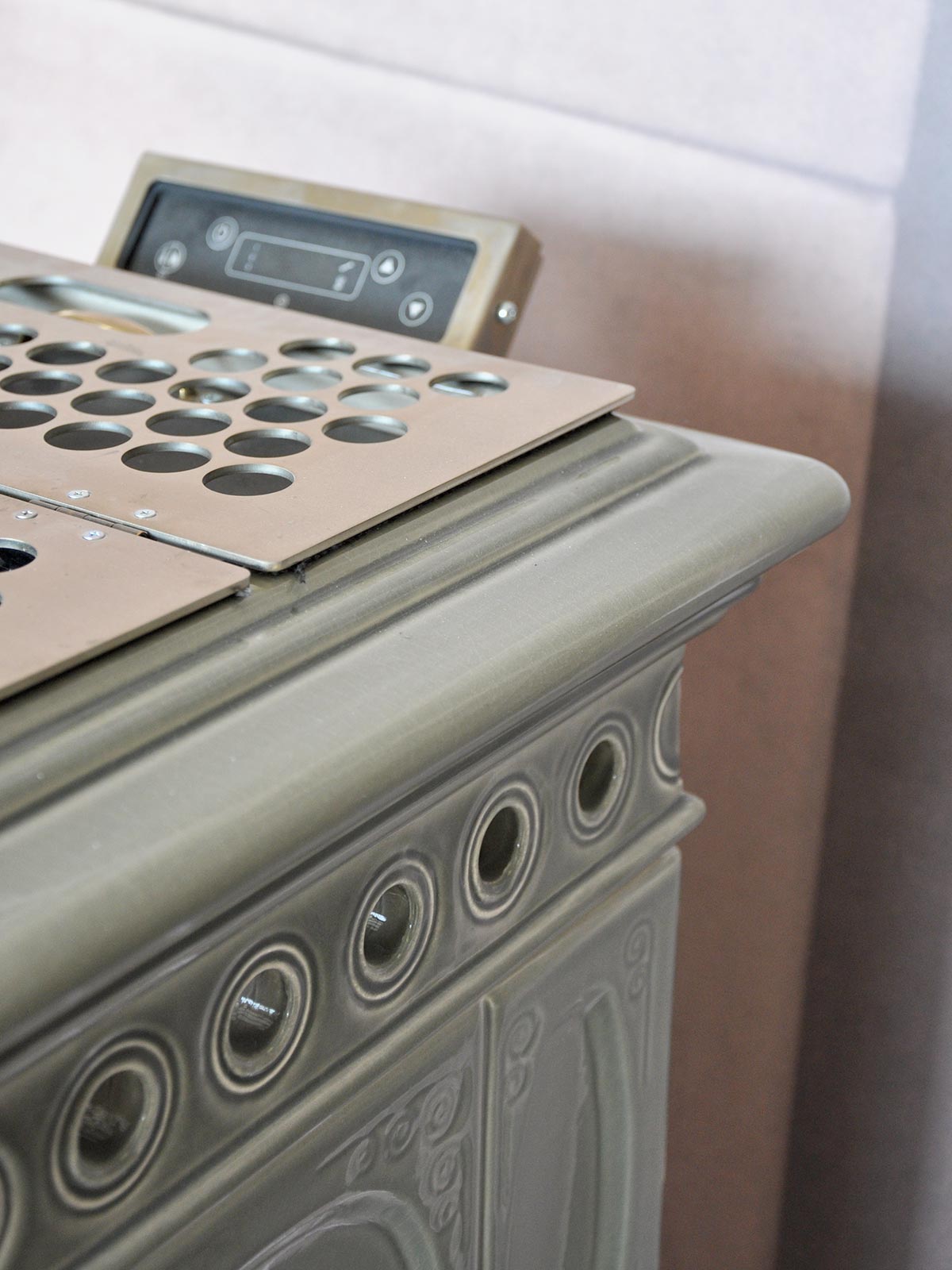

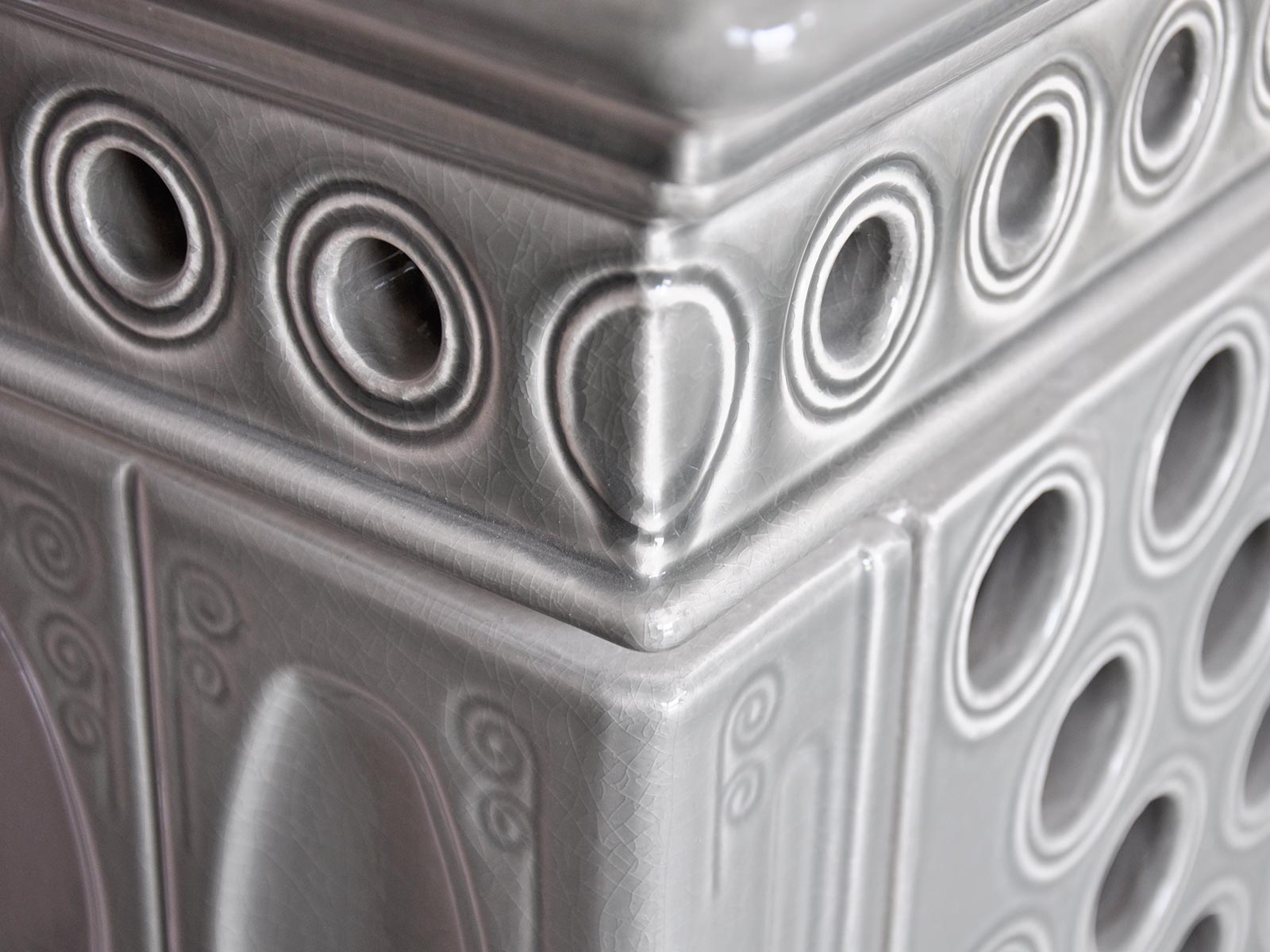

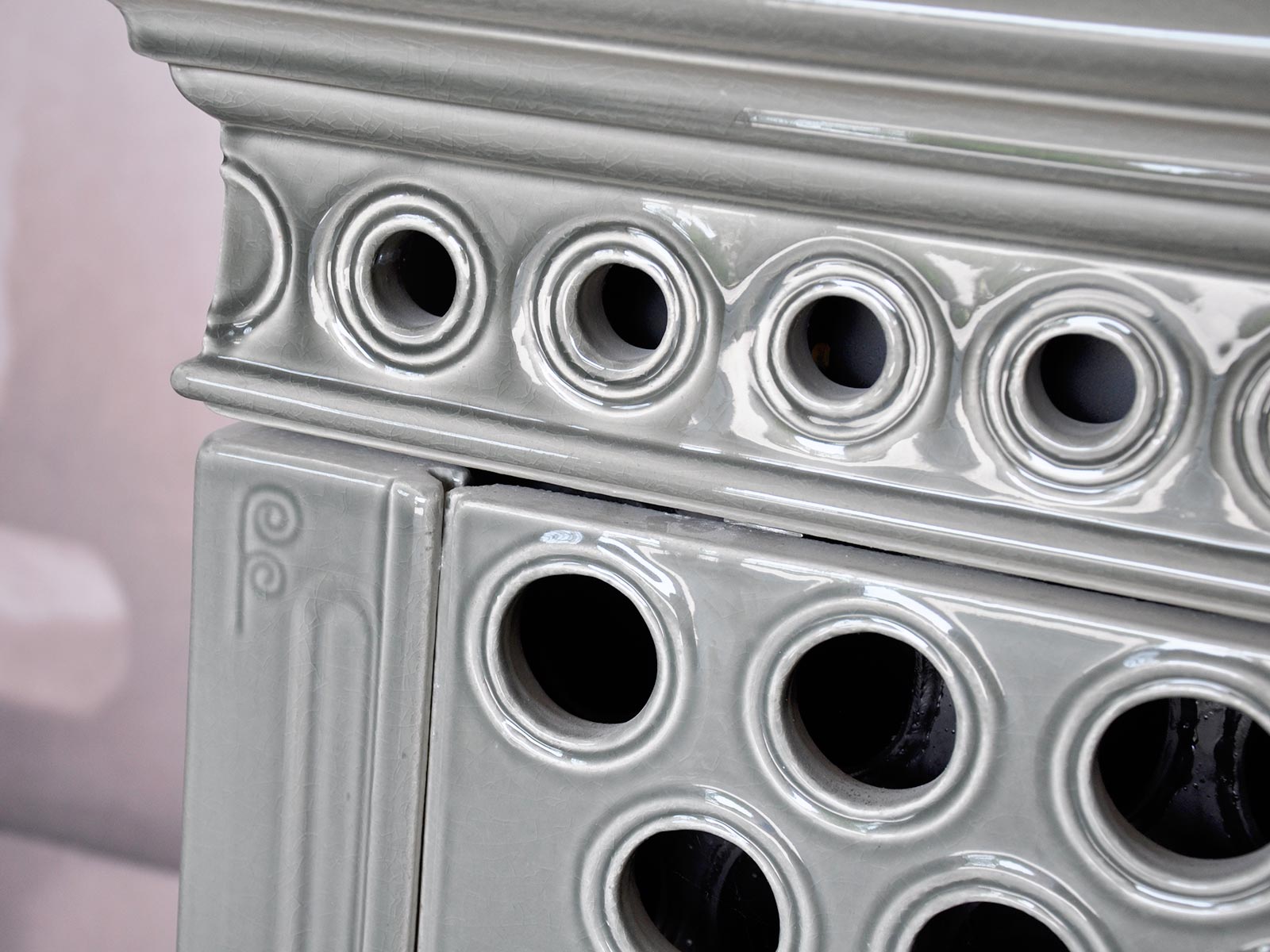

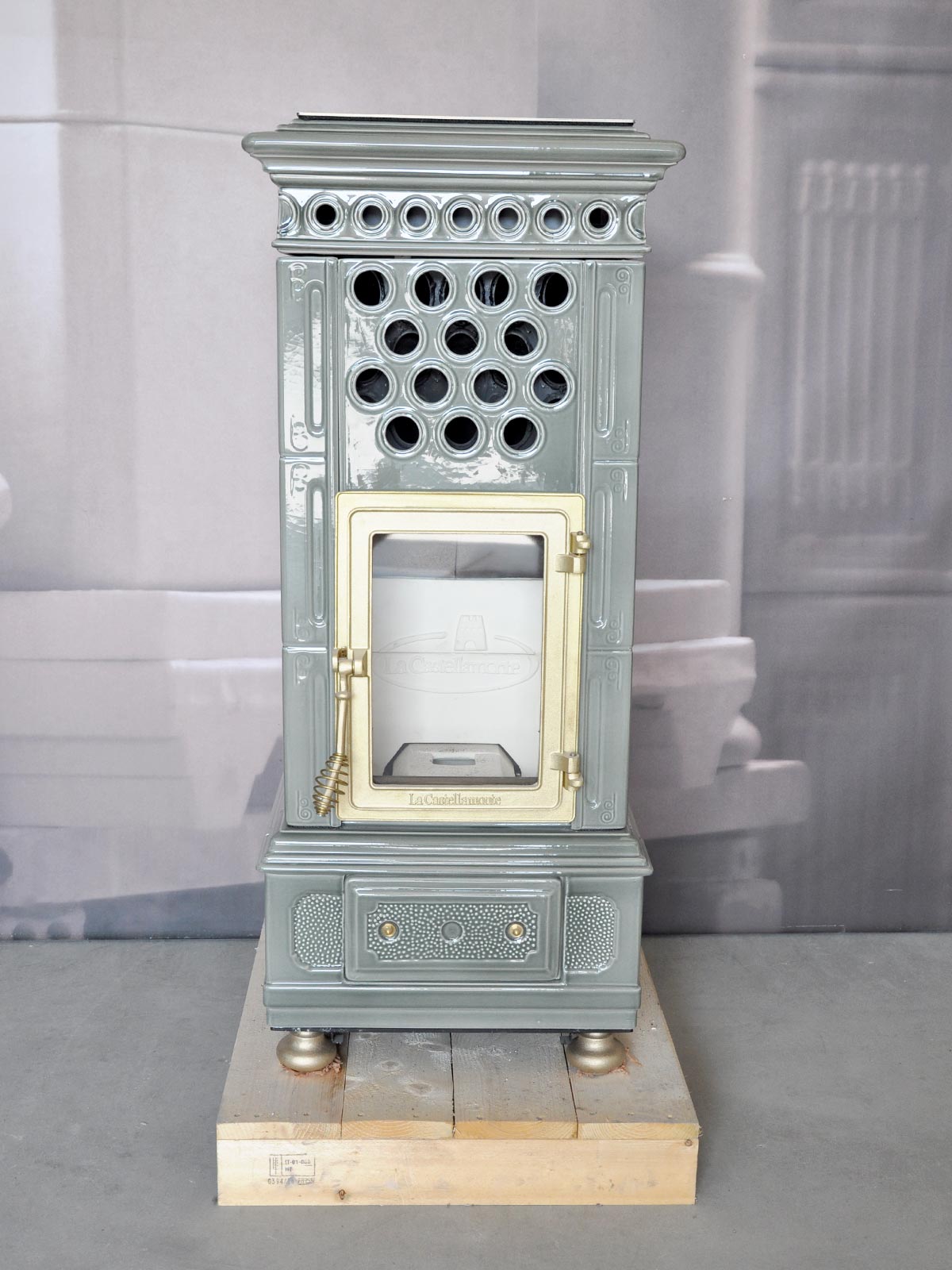

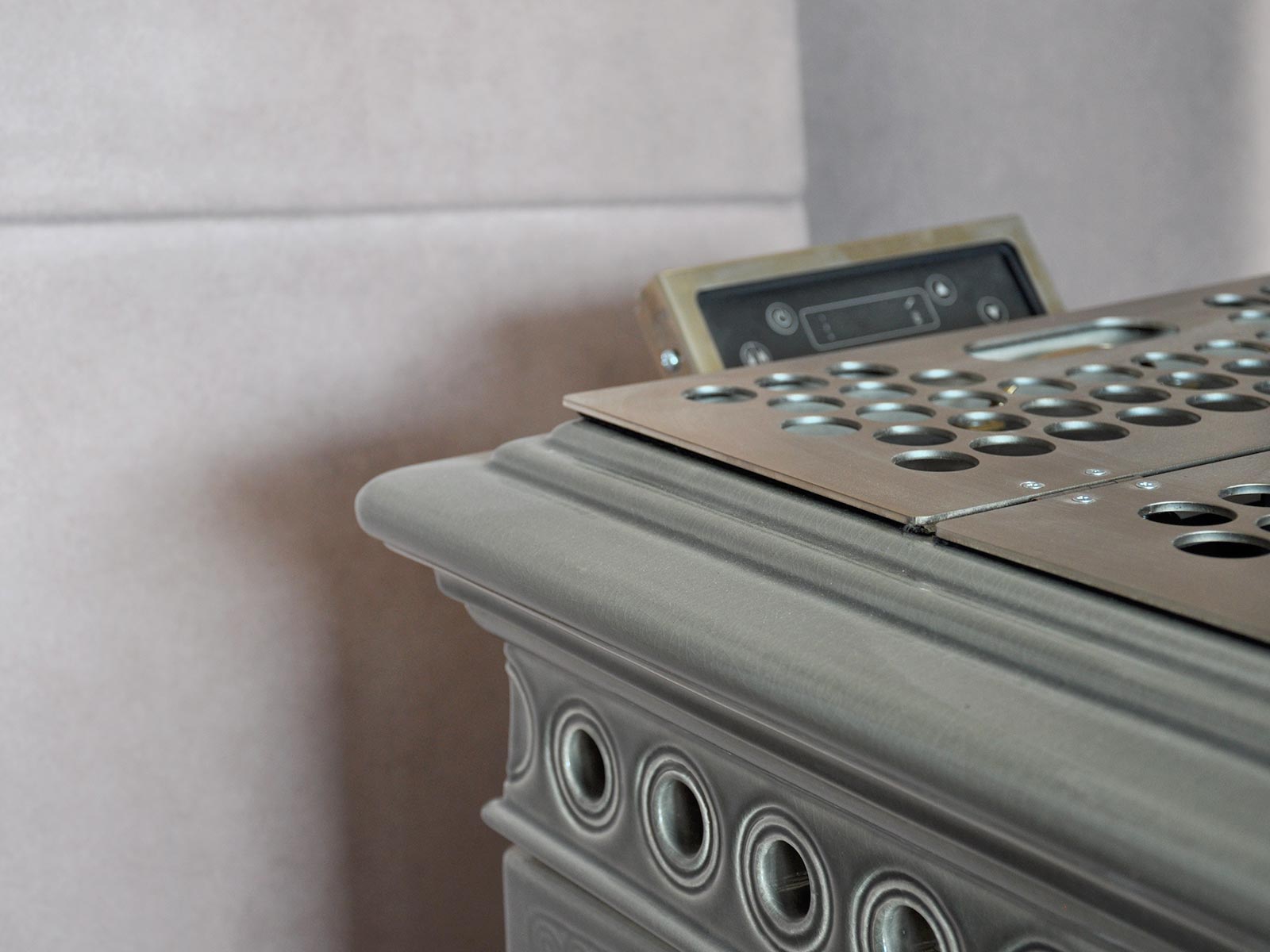

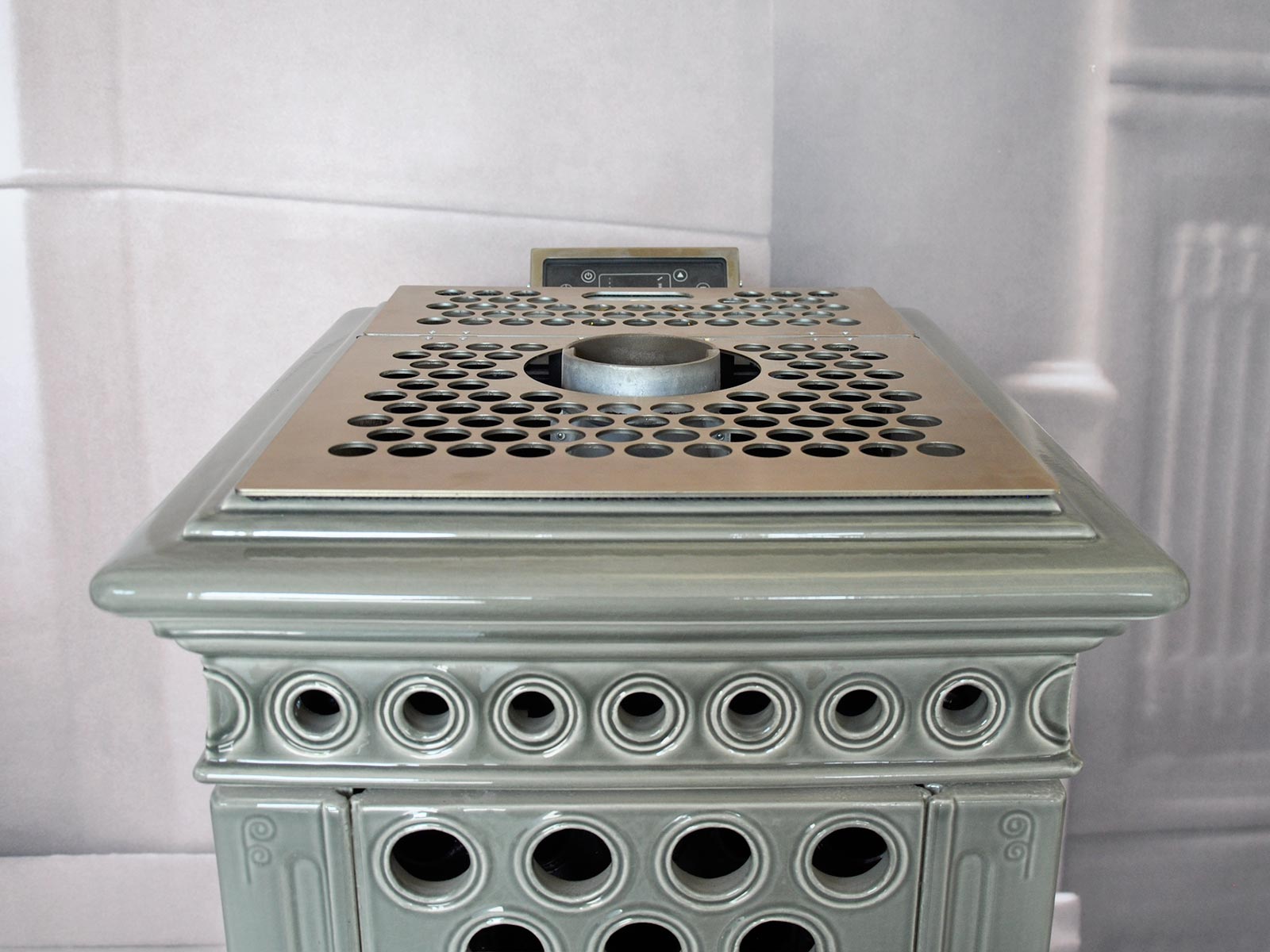

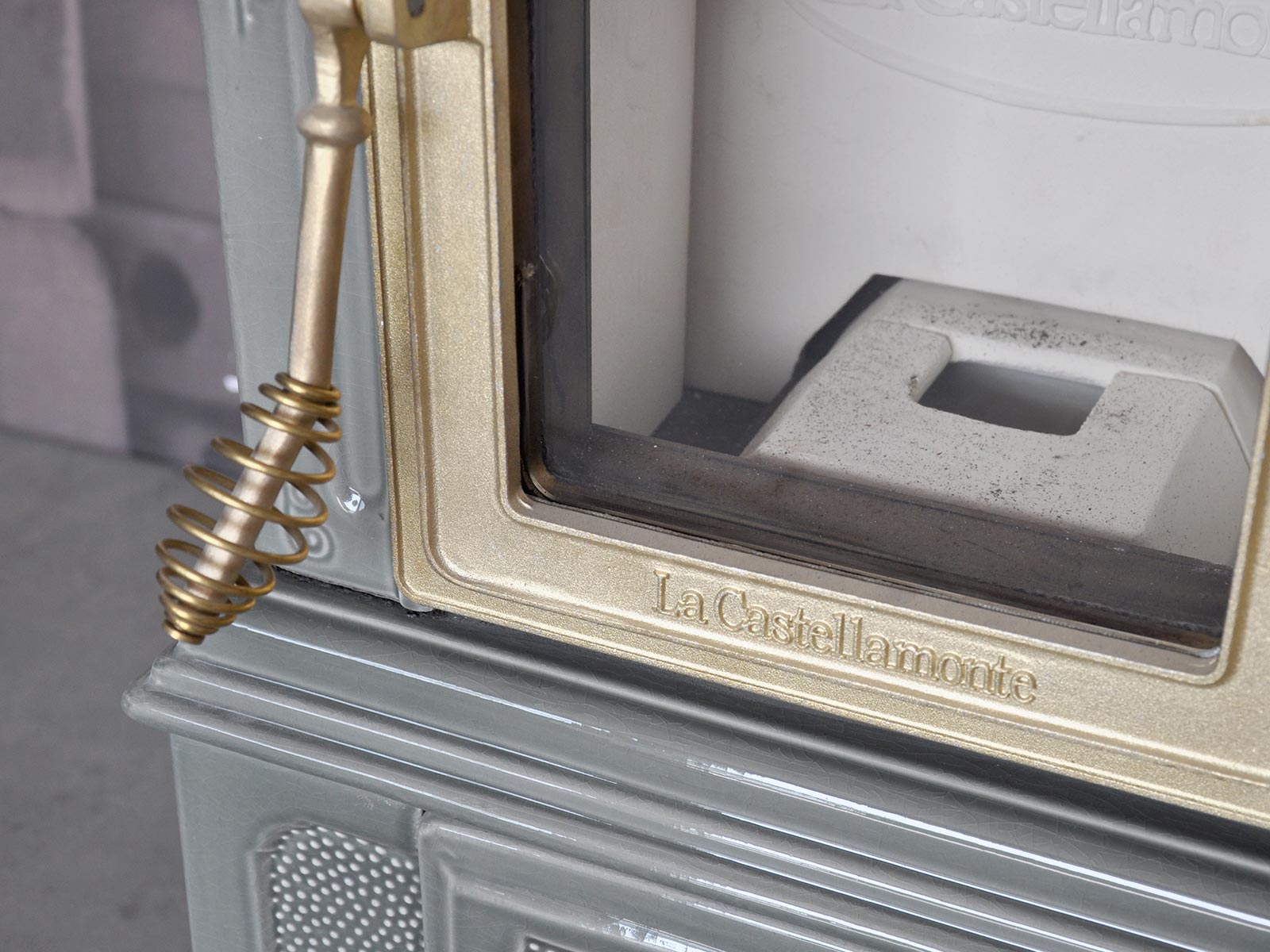

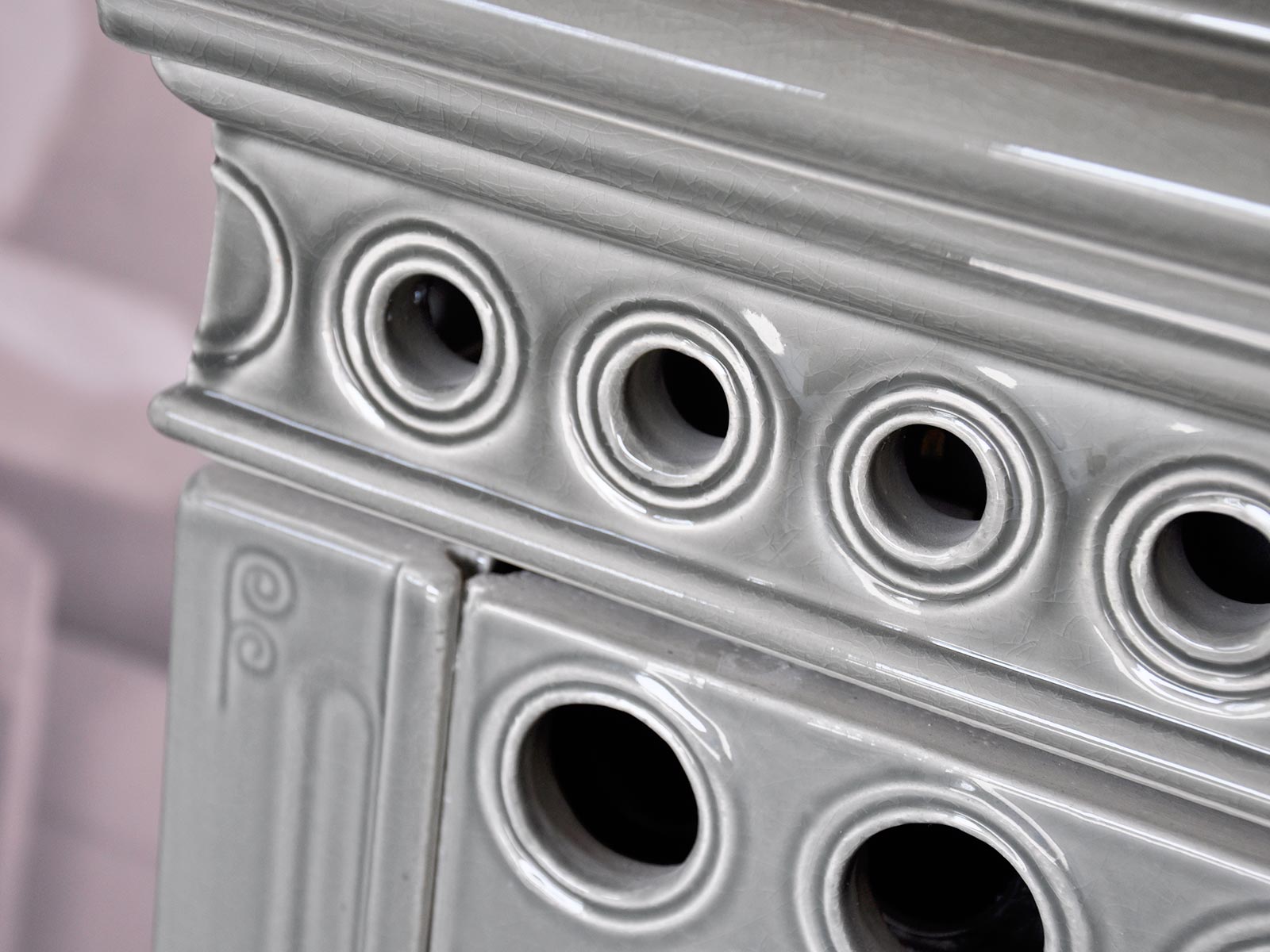

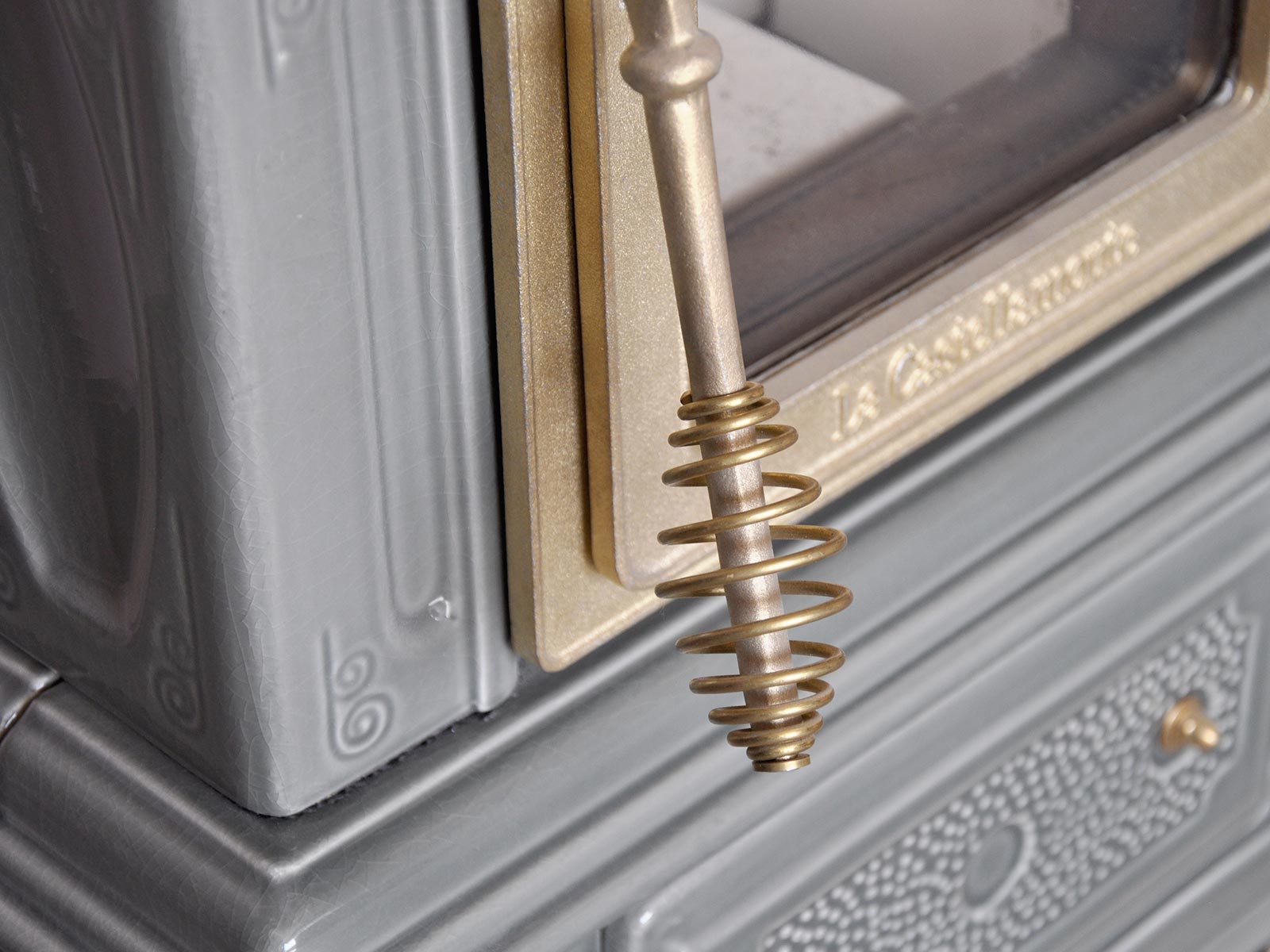

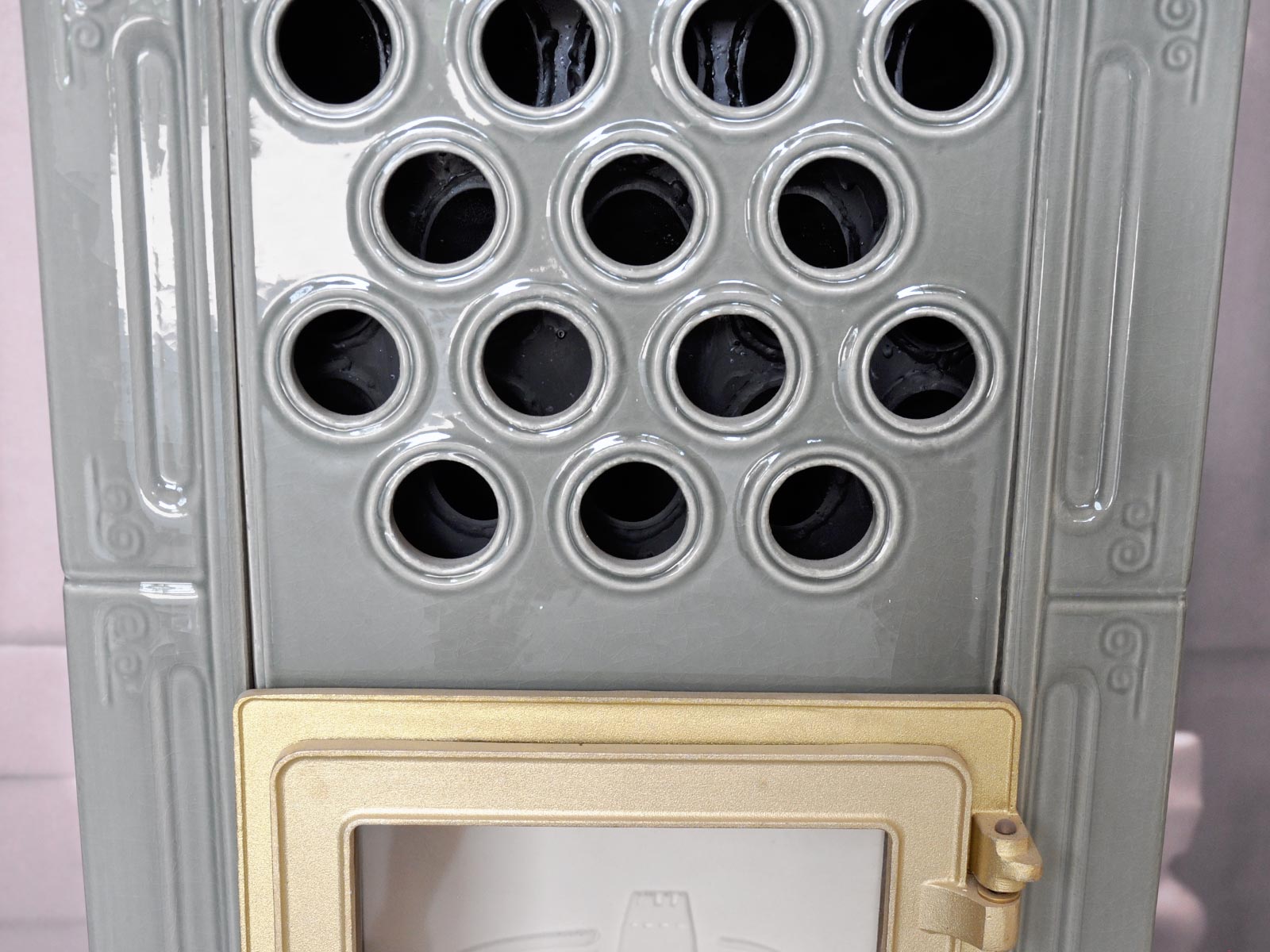

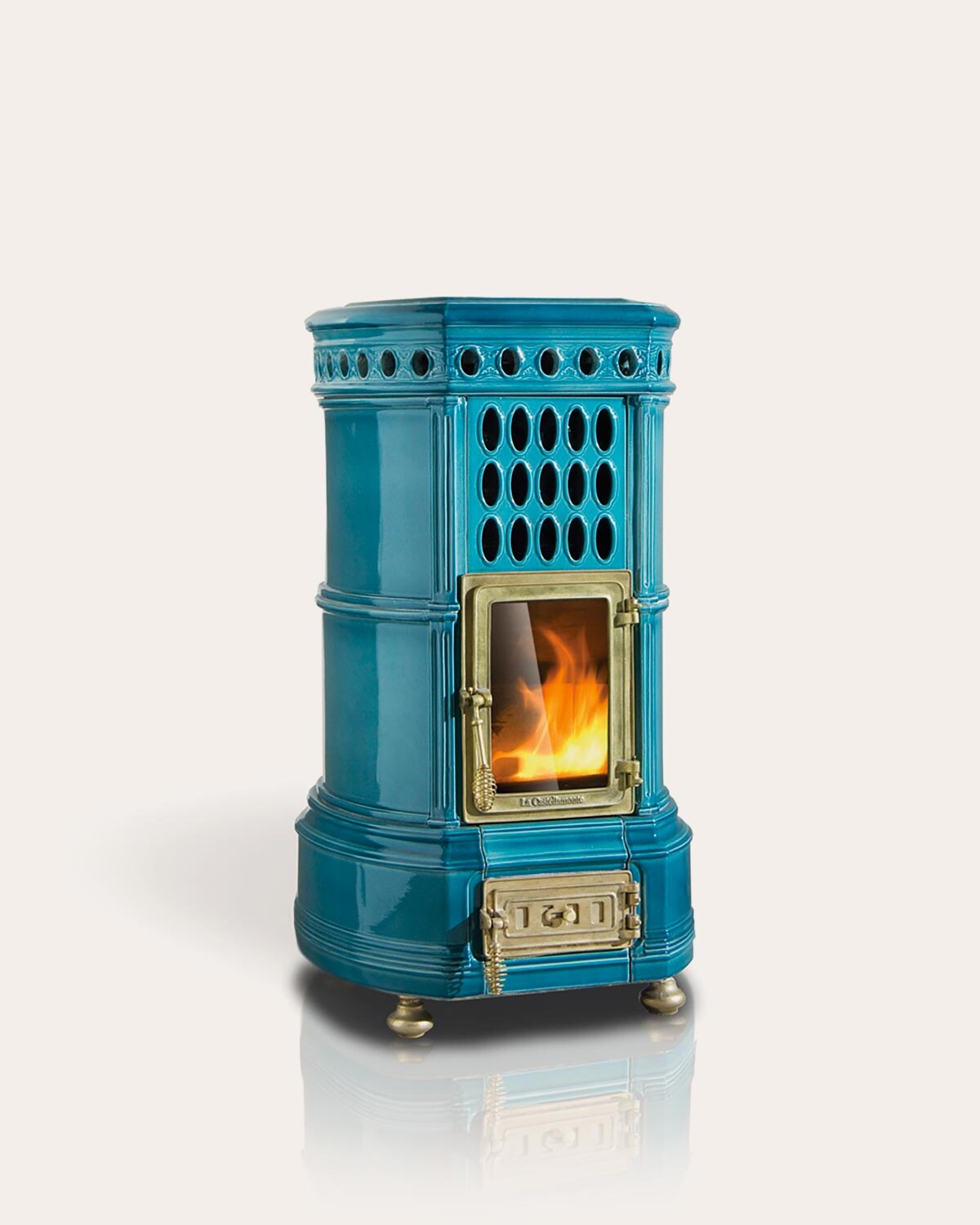

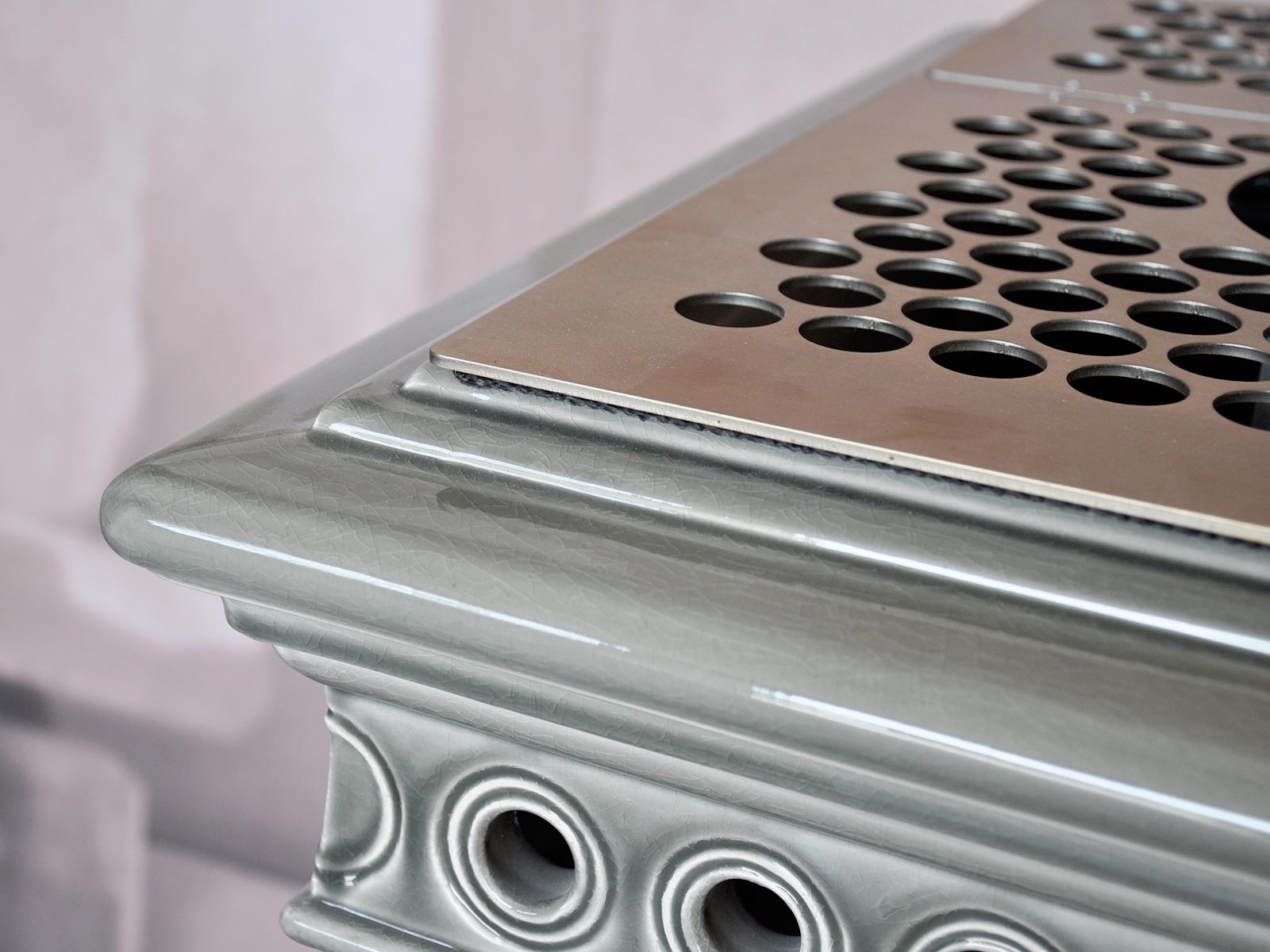

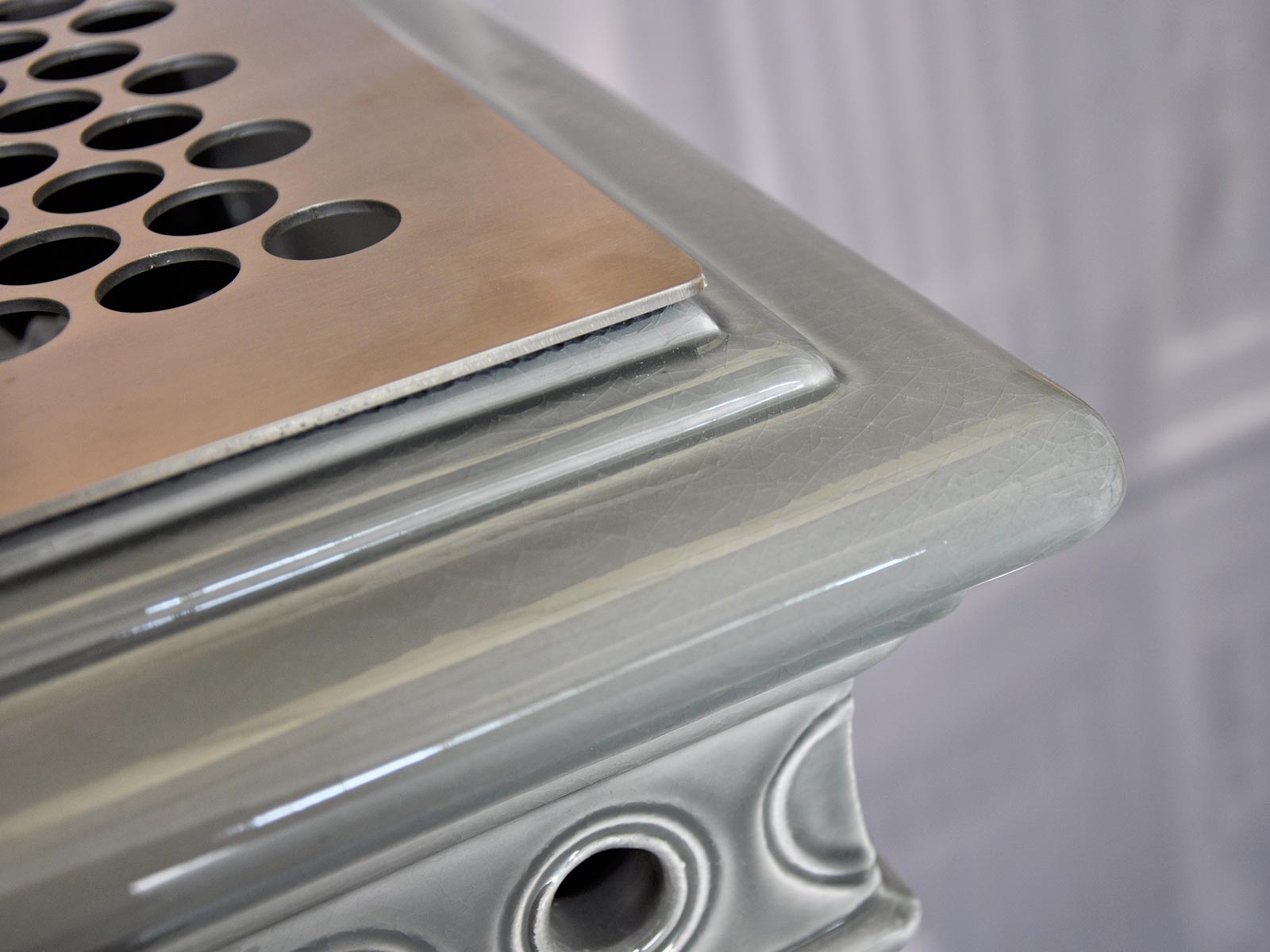

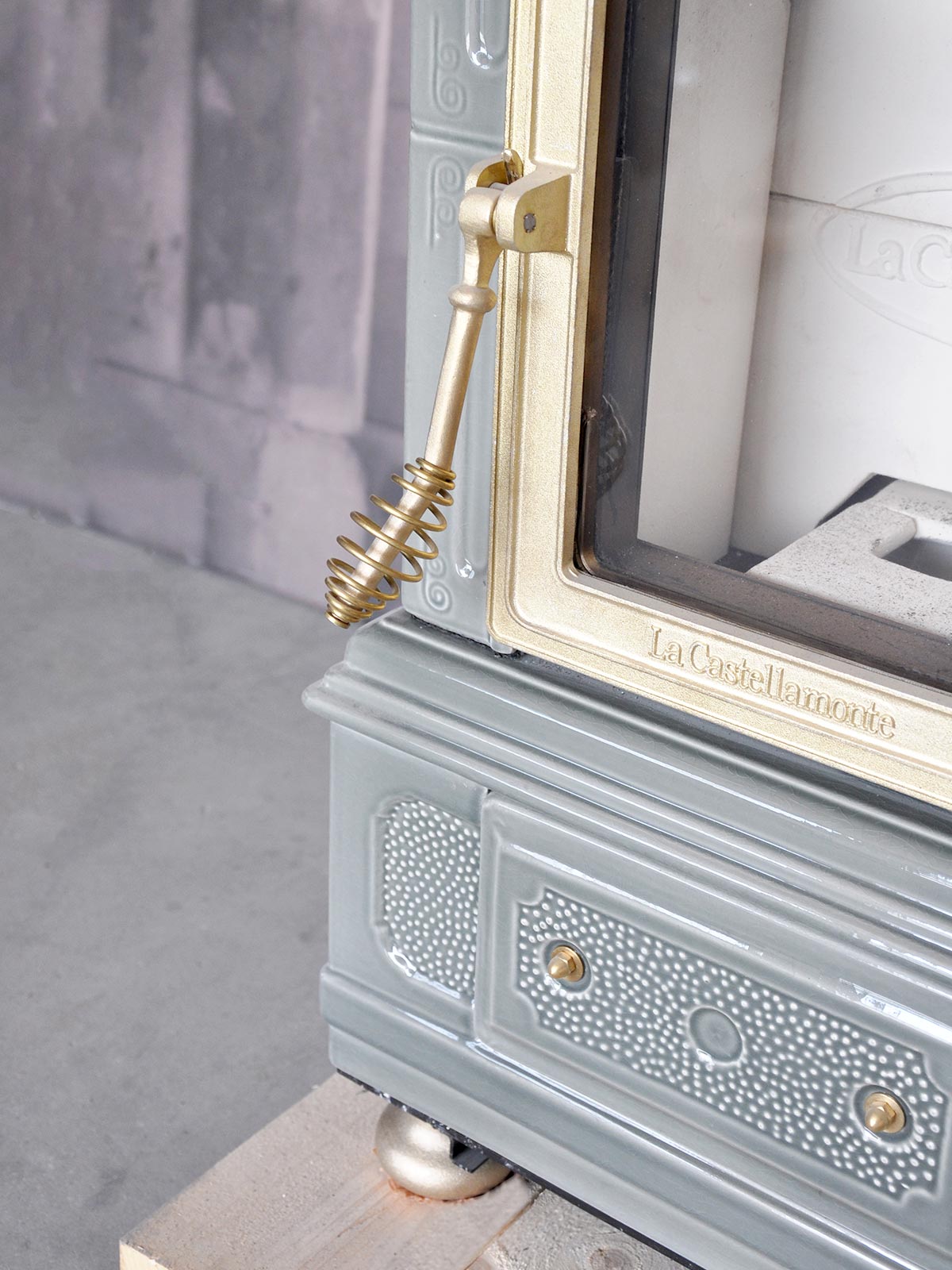

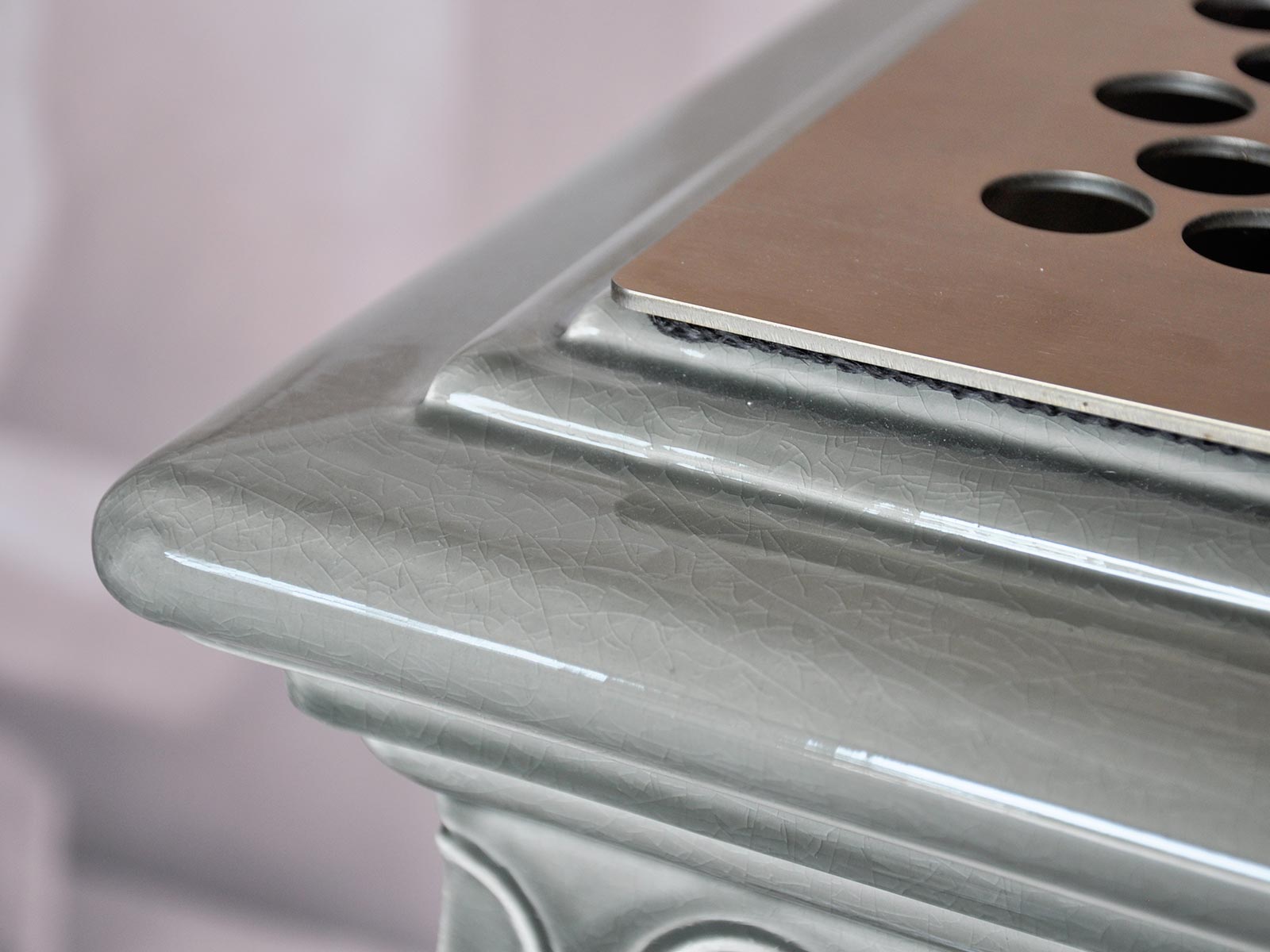

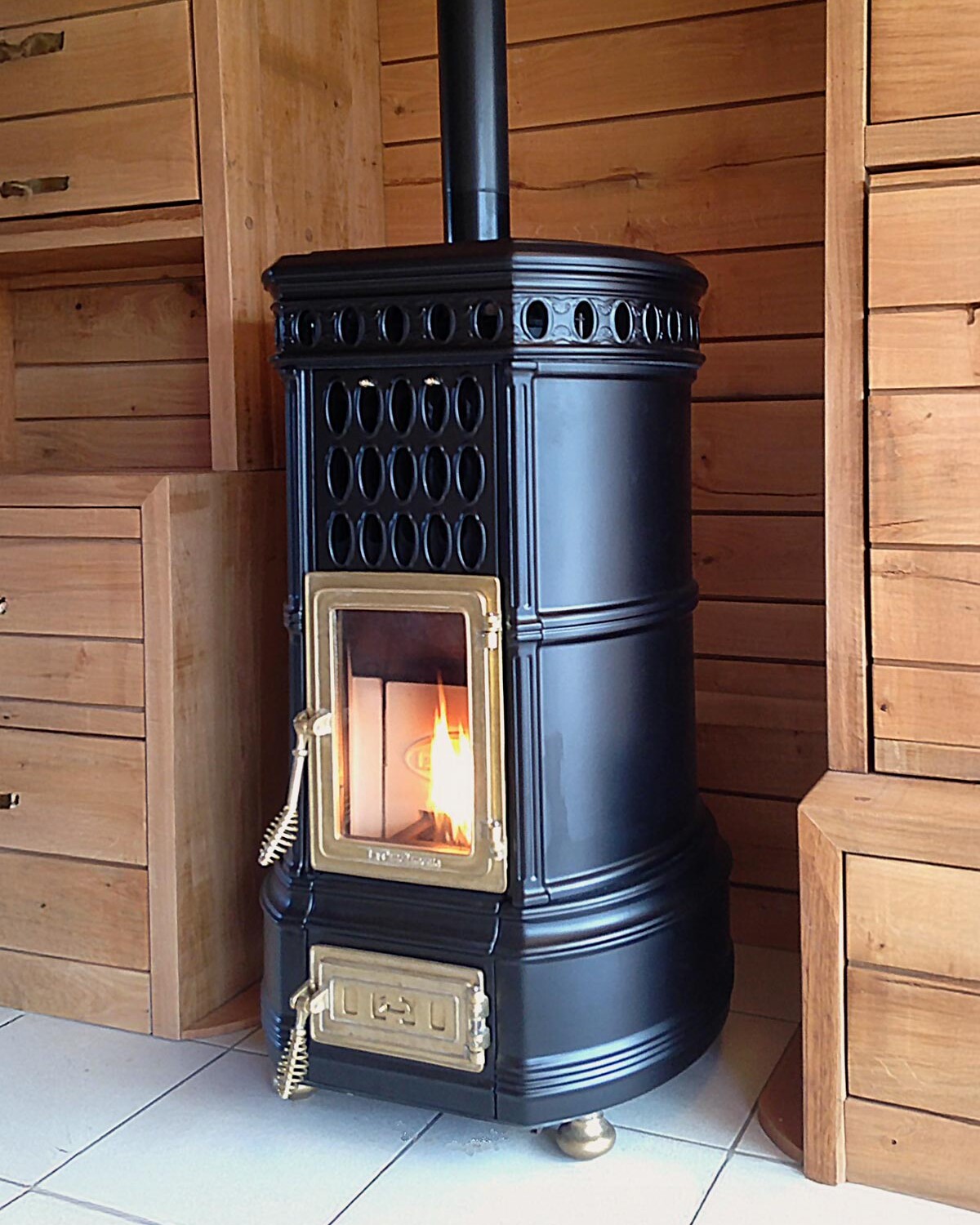

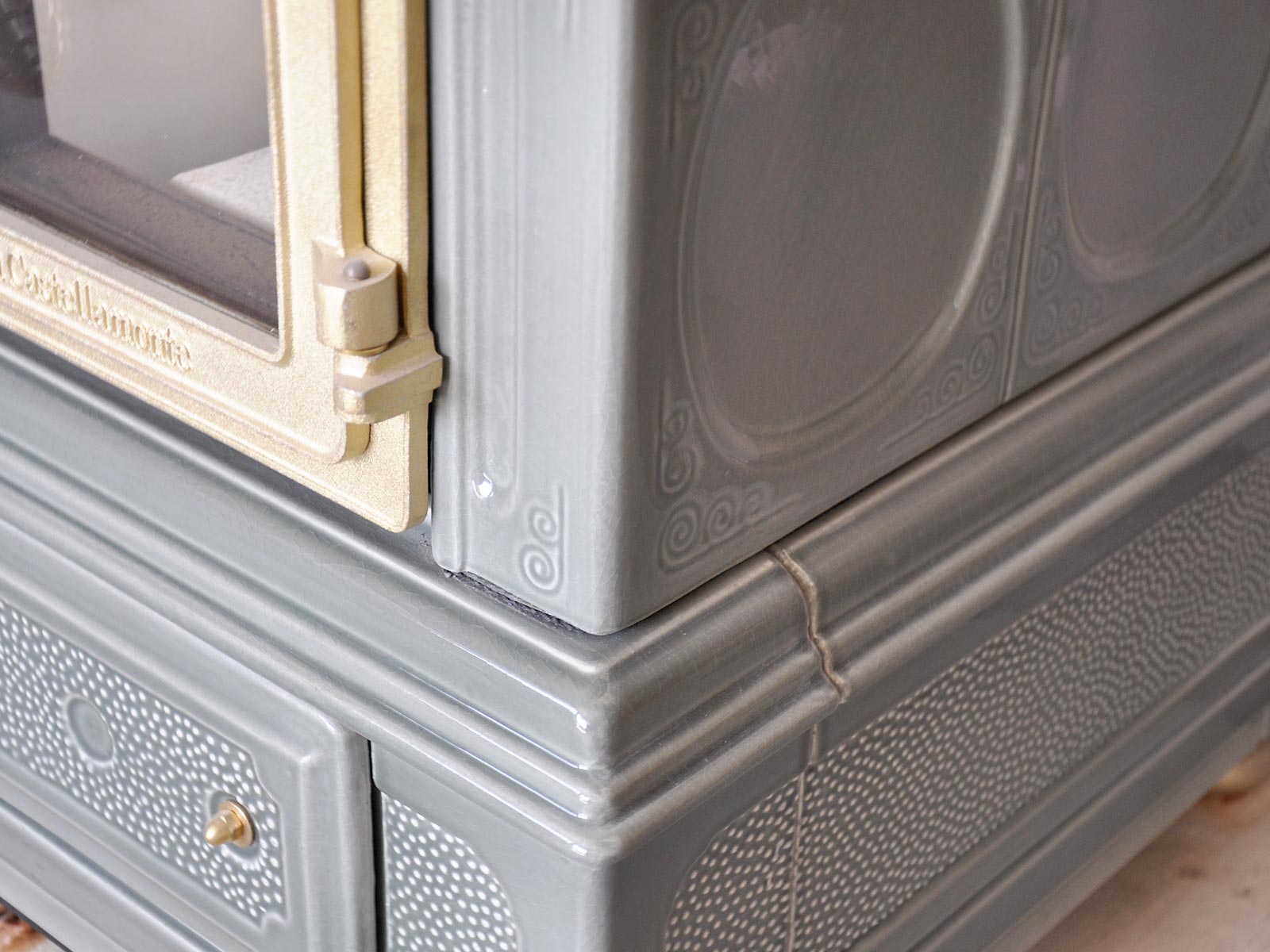

Photo Gallery
| Min. and max heat output | kW | 4,1 - 8,5 |
|---|---|---|
| Heatable volume (Isol. Legge 10/91) ** | m3 | 230 |
| Efficiency | % | 88,5 - 86,5 |
| Carbon monoxide emissions % CO 13% O2 | % | 0,028 - 0,034 |
| Pellet consumption | Kg/h | 0,93 - 1,70 |
| Reservoir capacity | Kg | 20 |
| Autonomy | h | Fino a 22 |
| Smoke temperature | °C | 155 - 230 |
| Smoke exit diameter | cm | 10 |
| Draft | Pa | 0 |
| Total weight | Kg | 250 |
| Dimensions ( W x D x H ) | cm | 51 x 60 x 120 |
| Electricity connection | V ; Hz | 230 ; 50 |
| Absorbed electrical power | W | 50 / 110 |
* Complies with EN 13240 | DEUTSCHLAND BimSchV 2
** The data of the heatable volumes are indicative, as they may vary depending on the following factors: outdoor temperature, altitude, building exposure, thermal insulation of walls and roofs, sealing condition of the windows, presence or not of double glass, using the stove as a main or additional heating.
